5-Axis Vertical Machining Center

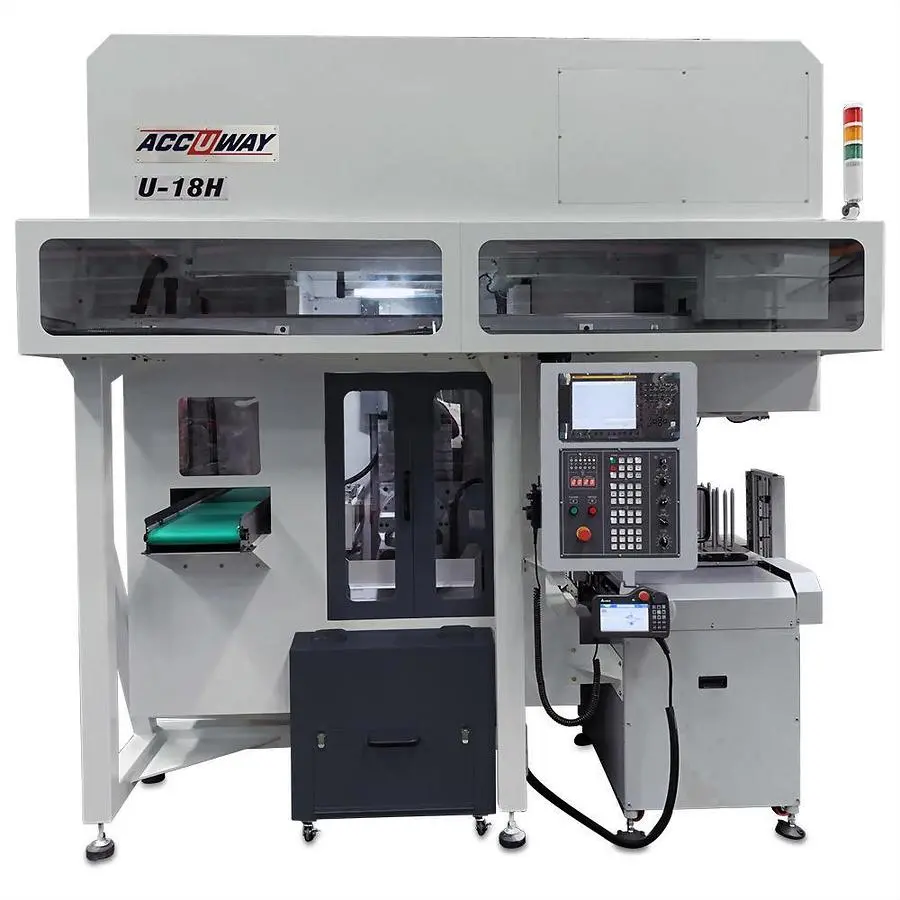

ITEM/MODOL: U-18H
Controller: FANUC 0i-M
Spindle speed: rpm 60,000
Spindle nose: φ6
Drive system: Direct
Z-axis travel: mm 300
C-axis travel: degree 360
Max. speed of rotary axis (C-axis): rpm 62.5
Max. speed of tilting axis (A-axis): rpm 40
Max. table loading at 0°: kg 60
Max. table loading at 90°: kg 60
Spindle nose to table: mm 58~358
Table dimension: mm Ø200
Max. workpiece size: mm Ø200 x 200
T-slot size: mm 12
X-axis Rapid Traverse Rate: m / min 48
Y-axis Rapid Traverse Rate: m / min 48
Z-axis Rapid Traverse Rate: m / min 48
Cutting feed rate: m / min 12
Ball screw diameter (X/Y/Z): mm 32/32/32
Guideway bearing type: Ball
Spindle motor power(Cont. / 30min): kW 1.2
X/Y/Z feed motor: kW 3/3/4
Coolant pump motor(50Hz/60Hz): kW 0.53+0.85/0.75+1.27
Air supply: kg/cm² 5.5
Machine dimension L x W x H: m 2.8 x 2.5 x 3
Net weight: kg 3500
