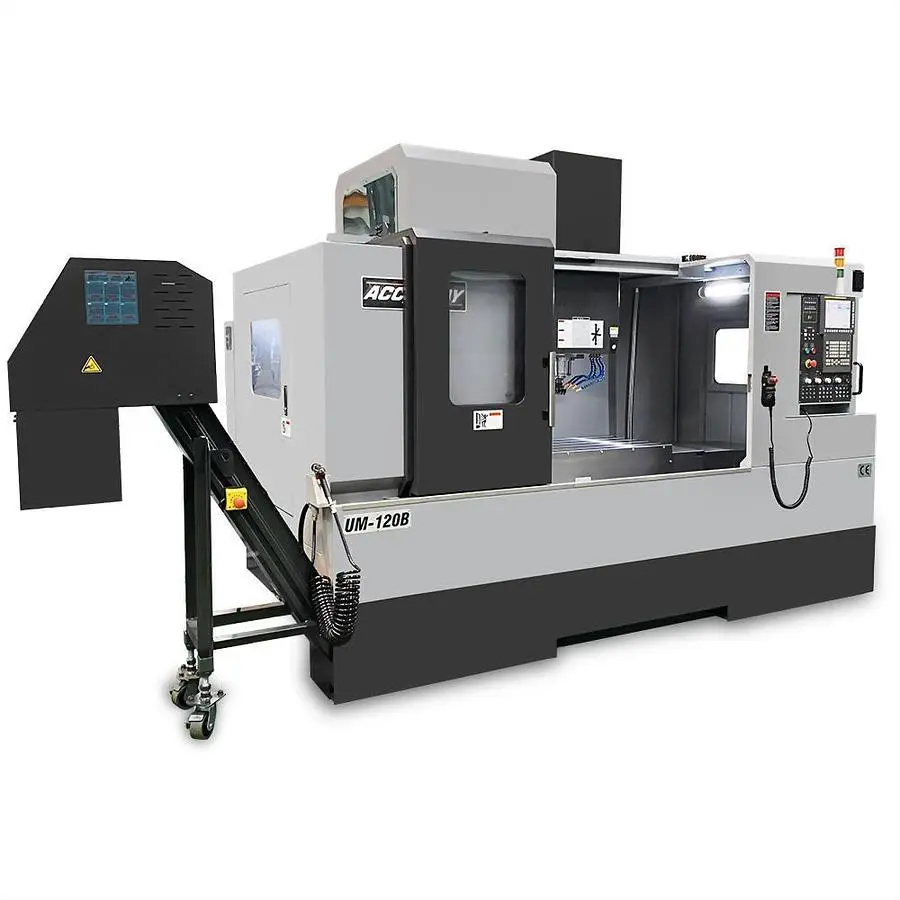

Vertical Machining Center
STANDARD ACCESSORIES
FANUC 0i-M controller + AICC II
RJ-45 interface
Rigid tapping
Heat exchanger for electric cabinet
10.4" Colored LCD monitor
Lubrication system
4-bar coolant system
Cutter air blast
Spray gun
Three-color warning light
Spindle oil cooling system
OPTIONAL ACCESSORIES
Data server 2G
Linear scale (Heidenhain)
Contact tool setter
Workpiece touch probe
2-step gear box
Air cooler for electric cabinet
Spindle speed upgrading
Upgrade to 15" Colored LCD monitor
20 bar coolant through spindle system
Oil-coolant skimmer
Oil mist collector
4th axis interface + FANUC motor & driver
4th axis rotary table
Auto door
Chain type chip conveyor + chip cart
Transformer
CE version
Controller: FANUC 0i-M
Spindle speed: rpm 10000(12000)
Spindle nose taper: BT40
Bearing inner diameter: mm 70
Drive system: Belt(Direct)
X-axis travel: mm 1200
Y-axis travel: mm 650
Z-axis travel: mm 600
Spindle nose to table: mm 150~750
Table dimension: mm 1300 x 650
T-slot(No. of T-slot x width x pitch): mm 5 x 18 x 120
Max. weight on table: kg 1200
X-axis Rapid Traverse Rate: m / min 24
Y-axis Rapid Traverse Rate: m / min 24
Z-axis Rapid Traverse Rate: m / min 24
Cutting feed rate: m / min 12
Ball screw diameter (X/Y/Z): mm 45/45/45
Guideway bearing type: Box
Tool magazine capacity: units 24 (30/32)
Max. tool weight: kg 7
Max. tool diameter: mm 75
Max. tool diameter without adjacent tools: mm 150
Method of tool exchange: Arm type
Max. tool length: mm 300
AI contour control: AICC I (AICC II)
Spindle motor power(Cont./30min): kW 7.5/11 (15/18.5)
X/Y/Z feed motor: kW 3/3/4
Coolant pump motor(50Hz/60Hz): kW 0.75+1.27(1.01+1.73)
Air supply: kg/cm² 5.5
Machine dimension L x W x H: m 3.1 x 2.3 x 2.8
Net weight: kg 7500
