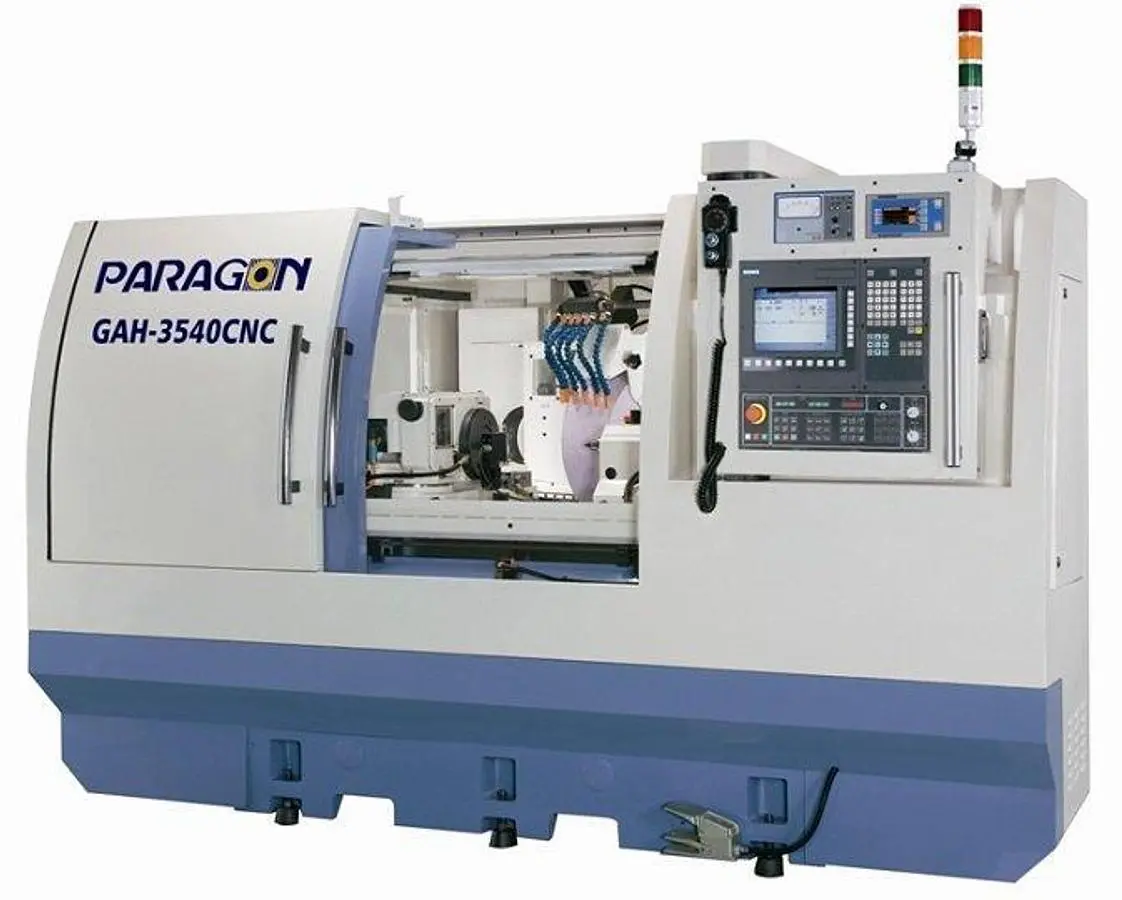

The new generation CNC angular cylindrical grinding machines (Heavy-Duty) GAH CNC Series by PARAGON is especially designed for high-speed grinding, offering greater capabilities than the GA CNC Series. This innovative designed machine with optimal and sturdy components can provide long service life and less down time, will bring you a new grinding experience.
X-axis and Z-axis greater span of guideways afford larger load capacity than GA CNC Series.
Time-saving and high efficiency in cycle and setup. The machine can accommodate an extra large grinding wheel with 610 mm diameter and 160 mm width which can complete multi-steps machining at one time and assuring high rigidity and precision.
Rigid and precise hydrostatic-hydrodynamic hybrid bearings on angular wheelhead.
Swing over table(mm): Ø350
Distance between centers(mm): 1,500
Max. outer grinding wheel dimension(mm): Ø610
Machine Dimension (WxDXH mm): 5,040 x 2,000 x 2,260
Machine Weight (kg): 8,500
