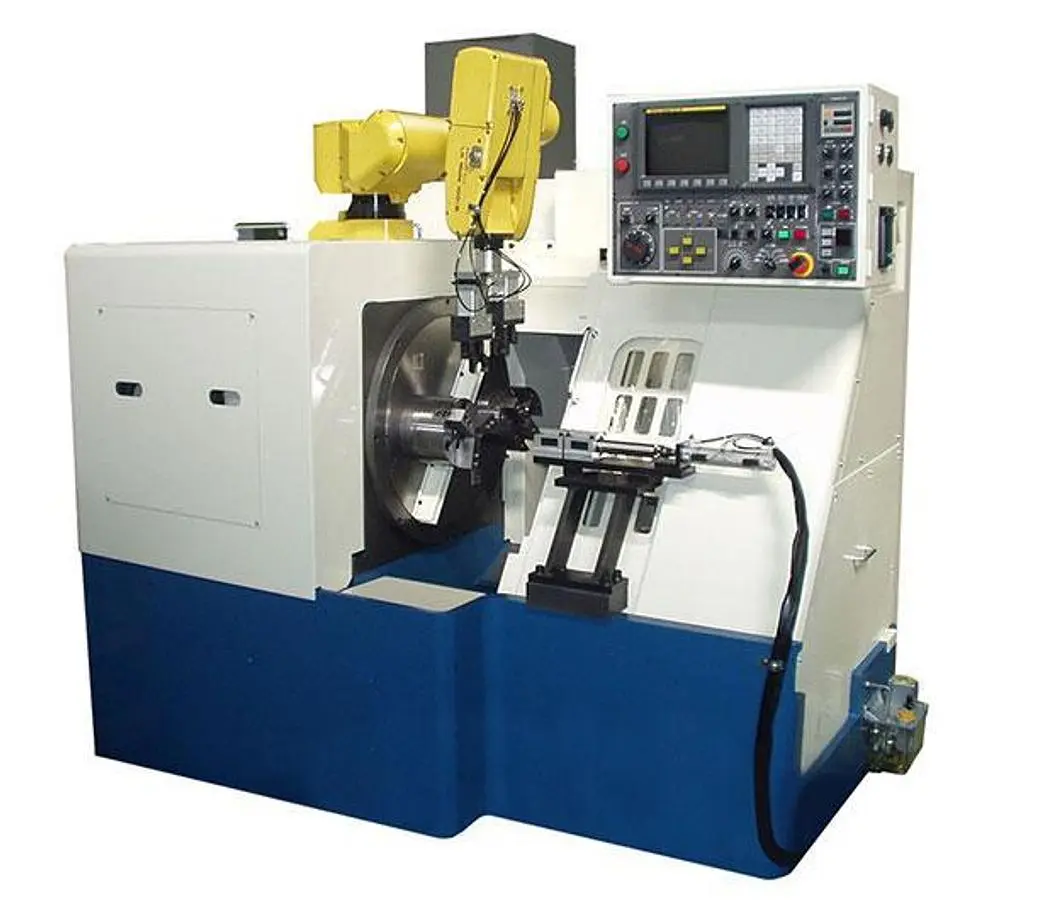

NEW SHIMADA-KITAKO 2SI-6 2SI-8 2SI-10 2SI-10 (12" CHUCK)

new

Welcome to Equipt
Log in or Sign up
Your Cart
You don't have any items in your cart.
NEW SHIMADA-KITAKO 2SI-6 2SI-8 2SI-10 2SI-10 (12" CHUCK)

NEW SHIMADA-KITAKO 2SI-6 2SI-8 2SI-10 2SI-10 (12" CHUCK)

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Overview
Type:
CNC Lathes
Manufacturer:
SHIMADA
Model:
2SI-6 2SI-8 2SI-10 2SI-10 (12" CHUCK)
Description

The Shimada 2SI-6 / 2SI-8 / 2SI-10 2-Spindle 1NC Lathe was developed from the architecture of “reducing idle time to the utmost limit."
Collet chuck, 6", 8", 10", 12" chucks
Loading with one spindle while processing with the other. Chip to Chip time “2 seconds.” Spindle index time “0.9 seconds.”
This design, with the chucking position outside the machine, leads to easy manual loading/unloading and chuck exchange
Simultaneous processing of the front and back side of workpieces with one machine

This lathe is optimal for the following types of work:
Tasks that need a short cycle time and a long loading time
Tasks with a short cycle time (work with a large loading time to cycle time ratio)
Tasks with a big difference between the 1st and 2nd process cycle times
Tasks that requires a large amount of time for chucking under manual loading condition

Specifications

Max. Turning Diameter: φ160mm (6") φ200mm (8") φ310mm (12") φ310mm (12")
Max. Turning Length: 120mm (5") 120mm (5") 120mm (5") 120mm (5")
No. of Spindles: 2 2 2 2
Chuck Capability: 6" 8" 10" 12"
Max. Spindle RPM: 6000 3500 3000 3000
Motor: 10/7.5kw 10/7.5kw 15/11kw 15/11kw
Type of Tool Holder: Turret Turret Turret Turret
No. of Attachable Tools: 8 or 12 8 or 12 8 or 12 8 or 12
X-Axis Stroke: 120mm (5") 120mm (5") 170mm (7") 170mm (7")
Z-Axis Stroke: 170mm (7") 170mm (7") 225mm (9") 225mm (9")
Rapid Feed Rate: 20m/min (66') 20m/min (66') 15m/min (49') 15m/min (49')
Control Unit: FANUC FANUC FANUC FANUC
Floor to Spindle Center: 960mm (38") 960mm (38") 1100mm (43") 1100mm (43")
Machine Height: 1800mm (71") 1800mm (71") 1700mm (70") 1700mm (70")
Floor Space: 1900×1600mm (75x63") 1900×1600mm (75x63") 2450×2200mm (96x87") 2450×2200mm (96x87")
Machine Weight: 3600kg (7937 lbs) 3800kg (8378 lbs) 5000kg (11,023 lbs) 5000kg (11,023 lbs)
