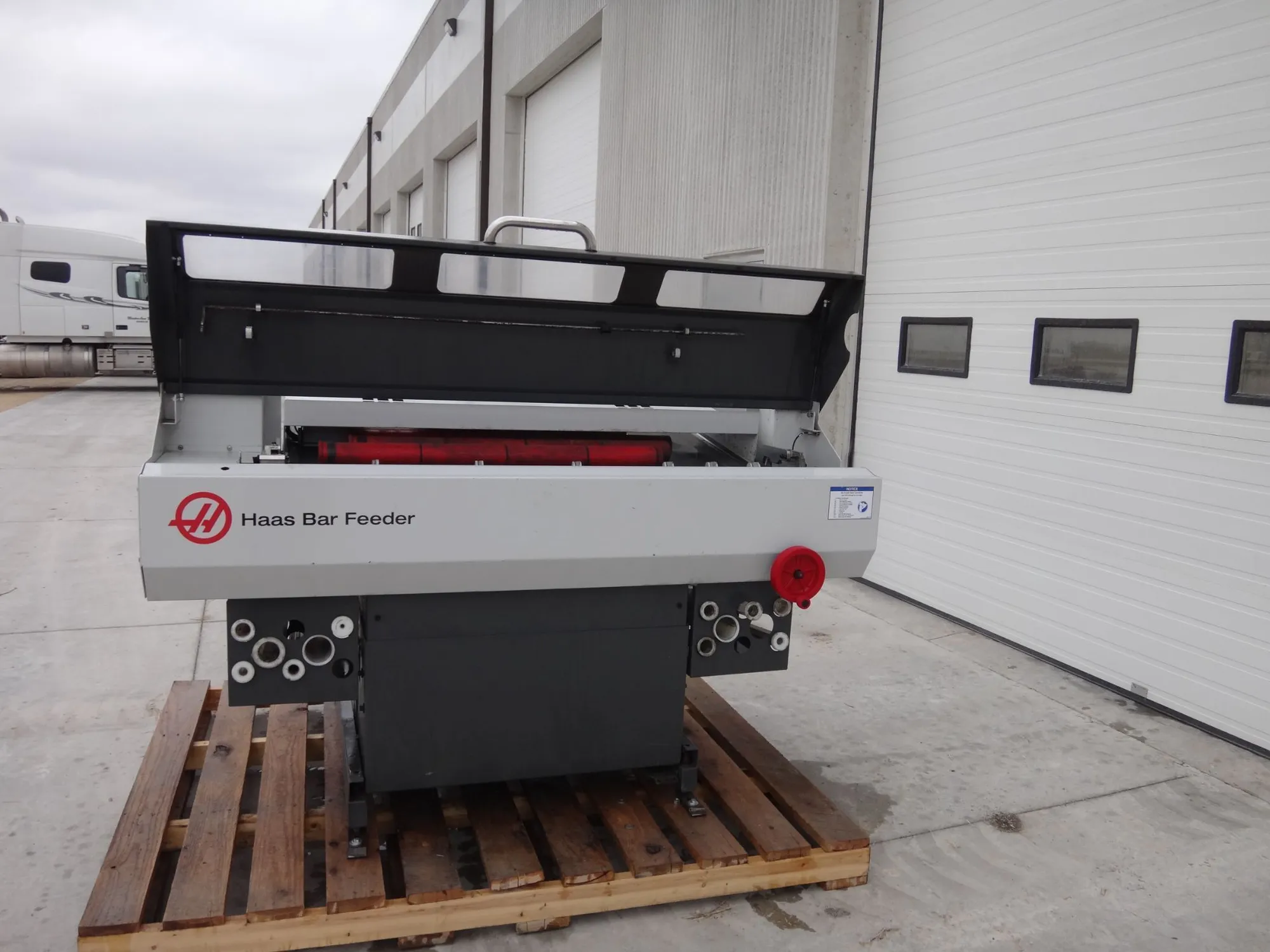

USED 2017 HAAS barfeed

2017 Haas Magazine Bar Feeder

Bar Diameter Range................0.375" – 3.00"
Bar Length........................48"
Minimum Bar Length................10"
Tray Capacity.....................(30) Qty x 1"
Staging Area Width................30"
Max. Weight of Total Bars.........650 LBS
Lift Arm Max Capacity.............80 LBS
Maximum Thrust Push...............100 LBF
Machine Dimensions................90" x 66" x 56"
Machine Weight....................1200 LBS

All Available Draw Tubes & Spindle Liners
Wiring for Haas Next Gen Control & Old Controls

**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
