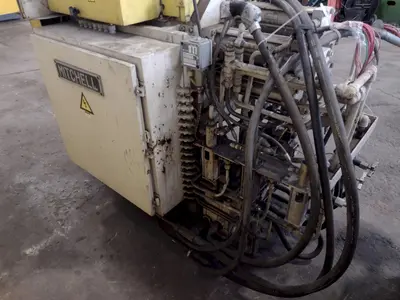

25,000 LB. MITCHELL (4) DIE IN LINE TUBULAR CONVEYOR ROLL SHAFT END FORMING MACHINE: STOCK #15298
Specs
SERIAL .............. PP687
YEAR NEW ............ 2009
RATED TUBE SIZES:
1-3/4" O.D. x .165" WALL
1-1/4" O.D. x .120" WALL
3/4" O.D. x .156" WALL
MIN CAPACITY OF CROSSHEADS(RATED):
#1, 2 & 3 ........... 29.500 LBS @ 3000 PSI
#4 .................. 24,900 LBS @ 3000 PSI
MAX CAPACITY OF CROSSHEADS(RATED):
#1, 2 & 3 ........... 29,500 LBS @ 3000 PSI
$4 .................. 24,900 LBS @ 3000 PSI
POINTING DIES:
#1, 2 & 3 ........... 5" OD (SPECIAL FLANGED)
CARBIDE INSERT DIES:
#4 .................. 3-1/2" OD CARBIDE
NUMBER OF POINT LENGTHS ... INFINITE BY ADJUSTABLE
LIMIT SWITCH:
MAX TRAVEL OF DIES ..... 12"
POINTING SPEEDS:
ADVANCE #1 DIE TO POINT LENGTH .. 60 IPM @1000 PSI
ADVANCE #1, 2, & 3 DIES ......... 349 IPM @ 2500 PSI
RETRACT #1, 2 & 3 DIES .......... 534 IPM @ 1000 PSI
ADVANCE #4 DIE .................. 328 IPM @ 2500 PSI
RETRACT #4 DIE .................. 442 IPM @ 1000 PSI
AUTOMATIC CYCLE ................. 1, 2, 3 OR 4 PUSH
TUBE GRIPPER JAWS:
MAX OD (SINGLE SIDED FIXED) ..... 1-3/4" MAX OD
LENGTH OF GRIPPER JAWS .......... 10"
MAX OPENING BETWEEN GRIPPER JAW . 1-3/4"
CLAMPING MECHANISM .............. DIRECT ACTING
HYDRAULIC CYLINDER:
HYDRAULIC RESERVOIR ............. 100 GALLONS
HYDRAULIC FLUID (PETROLEUM OIL) . 150-315 SUS @100E F
HYDRAULIC CYLINDERS:
#1, 2 & 3 DIE CROSSHEADS ........ (6) 2-1/2" BORE X 1-3/8" ROD
#4 DIE HOLDER ................... (1) @ 3-1/4" BOR X 1-3/8" ROD
CLAMPING ........................ (1) @ 6" BORE X 3-1/2" ROD
HYDRAULIC PUMP .................. DOUBLE VANE PUMP
14.8 GPM @2500 PSI
11.8 GPM @ 2500 PSI
METHOD OF LUBING DIES ........... LINCOLN LUBE
EJECTORS:
HYDRAULIC PUMP DRIVE MOTOR ...... 30HP/1200RPM/3PH/6HZ/TEFC/FR #326TC
DRIVE MOTOR STARTER SIZE 3 ...... FULL VOLTAGE COMBINATION
W/FUSED DISCONNECT IN NEMA 12 ENCLOSURE
PROGRAMMABLE ELECTRICAL CONTROL . YES
MAIN POWER SUPPLY ............... 460V/3PH/60HZ
CONTROL CIRCUIT ................. 120V/SINGLE PHASE
SPECIAL TUNGSTEN CARBIDE FLANGED DIES FURNISHED FOR 1-1/4" DIA TUBES:
(1) - 1.050"
(1) - .875"
(1) - .756"
(1) PAIR SINGLE SIDED TRUE GRIPPER JAW ..... 1.250"
