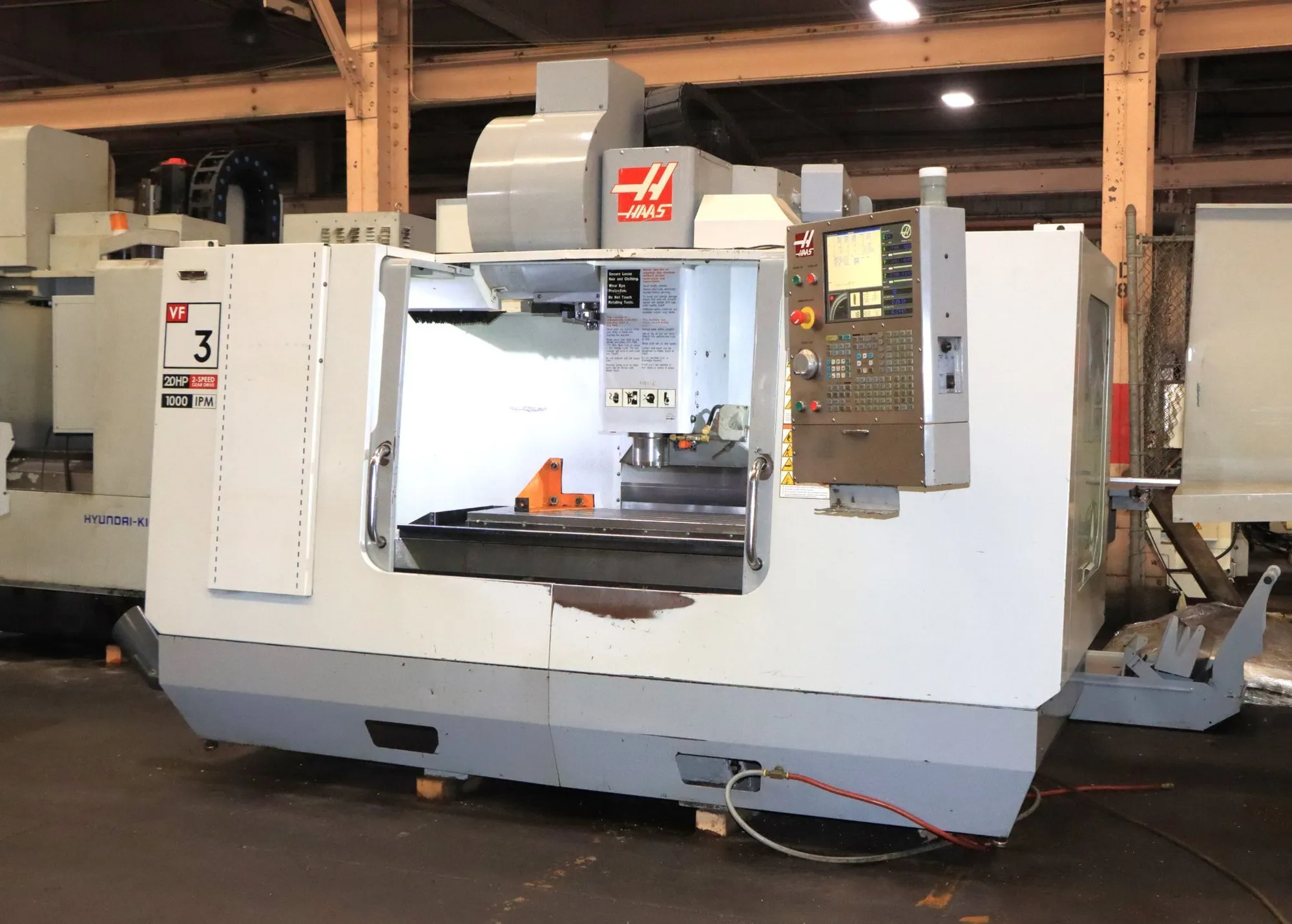

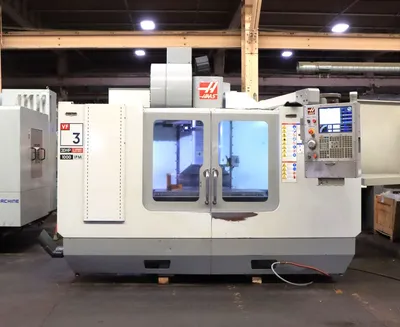

HAAS VF-3B Vertical Machining Center with new spindle installed in 2026 - featuring a 48" x 18" table, 40" x 20" x 25" travels, 7500 RPM spindle, and 20 HP motor. Includes 4-axis control, chip auger, 24-tool capacity, programmable coolant, and more. Available in NJ warehouse.
| TABLE LENGTH | 48" | 1,219.2 mm |
| TABLE WIDTH | 18" | 457.2 mm |
| TABLE CAPACITY | 3,500 lb | 1,587.6 kg |
| X-AXIS TRAVEL | 40" | 1,016 mm |
| Y-AXIS TRAVEL | 20" | 508 mm |
| Z-AXIS TRAVEL | 25" | 635 mm |
| DISTANCE FROM WORK FACE TO SPINDLE | 0" | 0 mm |
| SPINDLE SPEED | 7,500 RPM | 7,500 RPM |
| SPINDLE MOTOR | 20 hp | 14.9 kW |
| SPINDLE TAPER | CAT 40 | CAT 40 |
| TOOL CAPACITY (ATC) | 24 | 24 |
| APPROX MACHINE WEIGHT | 12,500 lb | 5,669.9 kg |
| Weight | 12500 | 12500 |
EQUIPPED WITH:
- HAAS 4-AXIS CONTROL
- 4TH AXIS DRIVE & WIRING
- 2-SPEED GEAR BOX
- CHIP AUGER
- PROGRAMMABLE COOLANT
- SIDE MOUNTED TOOL CHANGER
- HIGH INTENSITY LIGHTING
- 20 HORSE POWER SPINDLE DRIVE
*** NEW HAAS SPINDLE INSTALLED IN 2026.
PREVIOUS USAGE ON MACHINE, PRIOR TO NEW SPINDLE INSTALL: 11,800 HOURS.
TIME ON NEW SPINDLE: 0 HOURS
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
