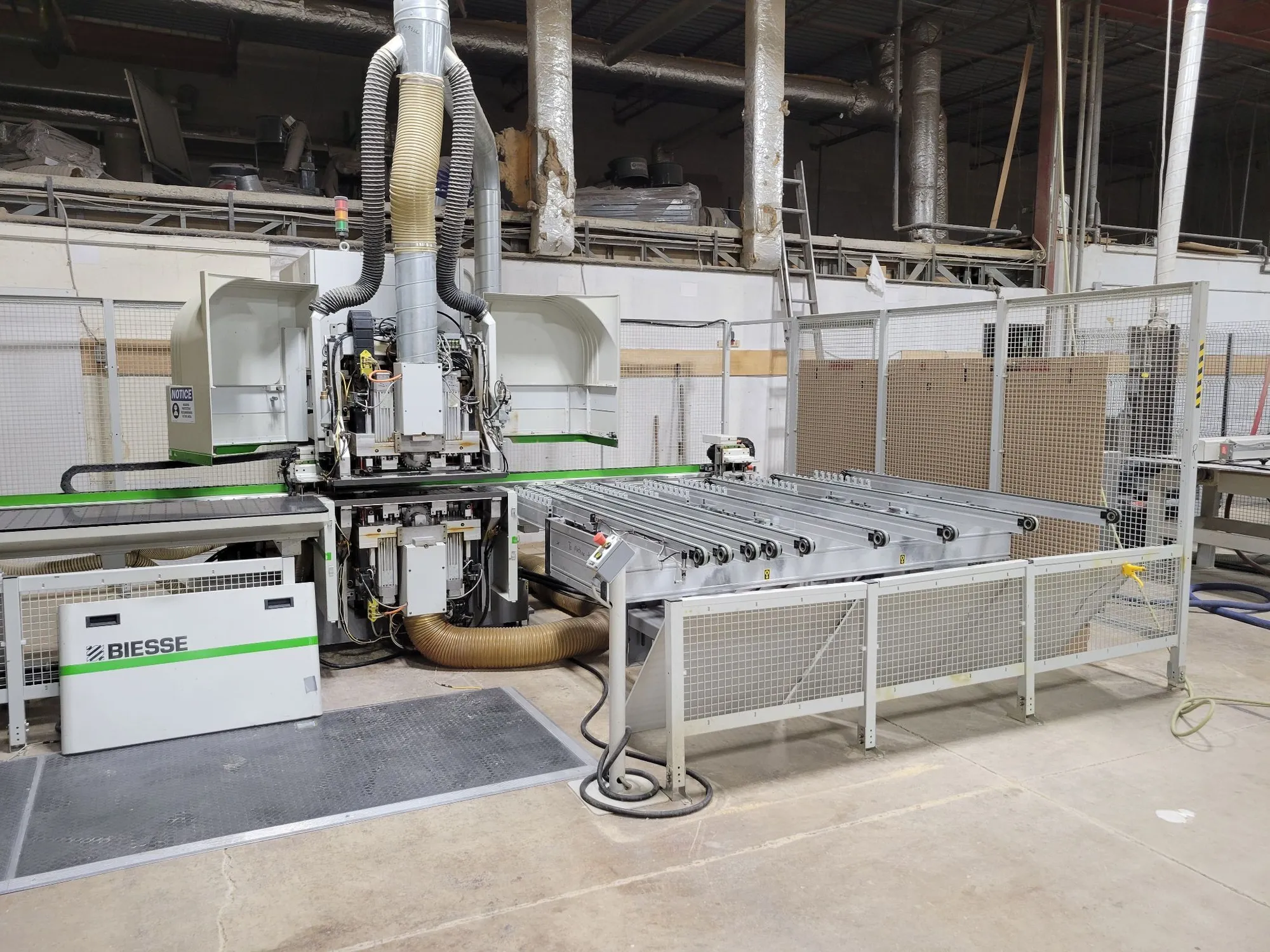

2006 BIESSE SKIPPER 100 CNC THROUGHFEED DRILLING & MACHINING CENTER
Manufacturer: Biesse
Model: Skipper 100
Mfg Date: 2006
Power:
Machine Type: CNC Throughfeed Drilling & Machining Center
Working Capacity:
X-Axis (Length): 3.5 in – 118 in
Y-Axis (Width): 2.7 in – 39.4 in
Z-Axis (Thickness): 0.3 in – 2.36 in
Axis Travel:
X: 118 in
Y: 39.4 in
Z: 2.36 in
Drilling Speed:
Max: 4,000 RPM
Milling / Routing
Feed / Motion
X Speed: 394 FPM
Y Speed: 295 FPM
Z Speed: 98 FPM
Table / Handling System
Throughfeed system
Automatic infeed conveyor
Automatic outfeed conveyor
Air cushion / floating panel handling
Simultaneous top & bottom machining
Control
CNC Control: BiesseWorks / PC-Based
DXF Compatible
Weight: 6600 lbs
Dimesions: 287 in x 173 in x 79 in
| X | 118" | 2,997.2 mm |
| Y | 39.4" | 1,000.8 mm |
| Z | 2.36" | 59.944 mm |
| RPM | 4,000 RPM | 4,000 RPM |
| Control | CNC | CNC |
| Dimensions | 287 in x 173 in x 79 in | 287 in x 173 in x 79 in |
| Weight | 6600 lbs | 6600 lbs |
