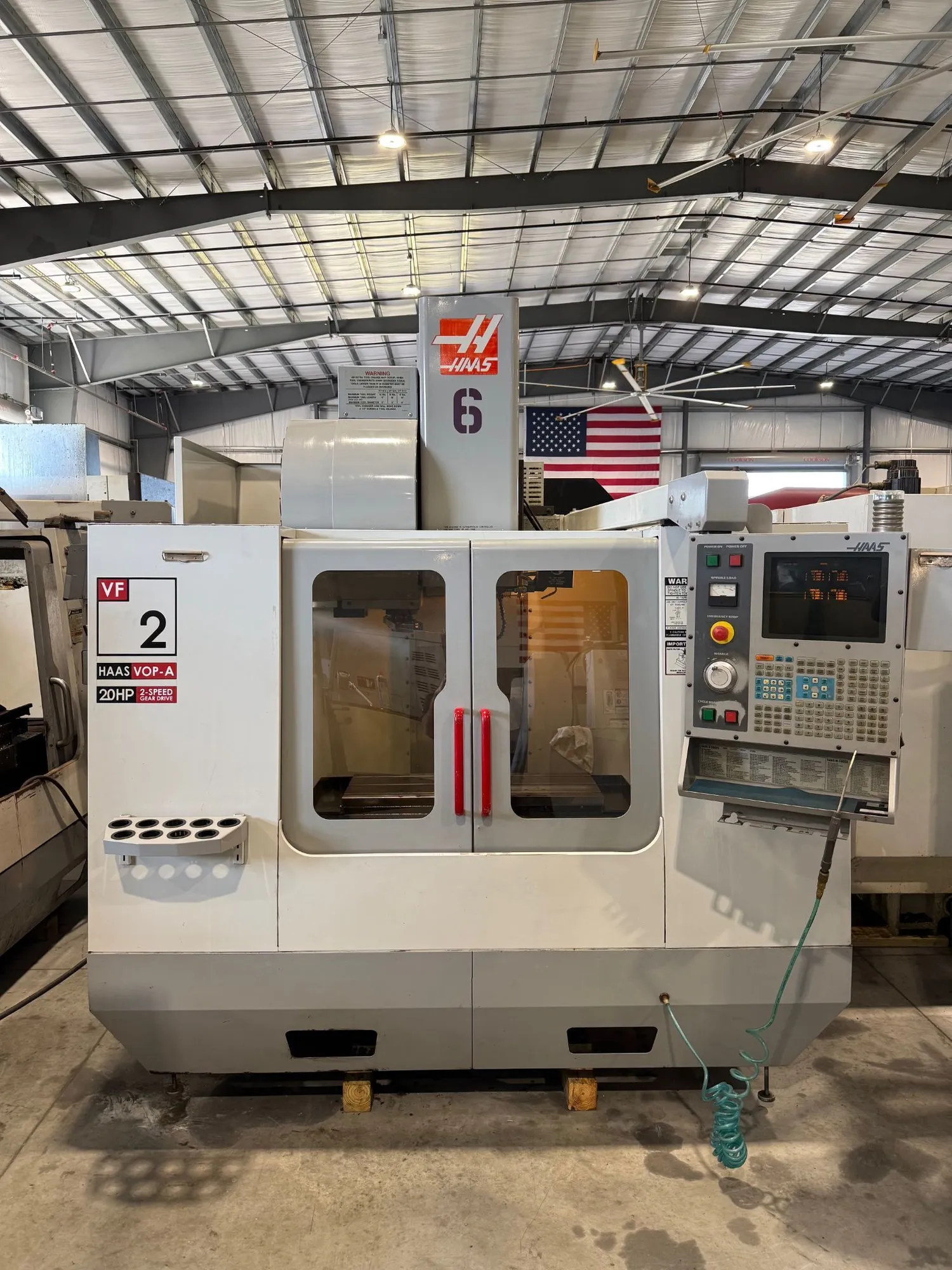

USED 2002 HAAS VF-2B
Overview
Description
HAAS VF-2B CNC Vertical Machining Center 20 H.P. 2002’ Prewired 4th #8252
Specifications
| X axis | 30" | 762 mm |
|---|---|---|
| Y axis | 16" | 406.4 mm |
| Z axis | 20" | 508 mm |
| Power | 20 hp | 14.9 kW |
| RPM | 7,500 RPM | 7,500 RPM |
| # ATC | 24 | 24 |
| Table-W | 14" | 355.6 mm |
| Table-L | 36" | 914.4 mm |
HAAS VF-2B CNC Vertical Machining Center 20 H.P. 2002’ Prewired 4th #8252
Reference # 8252
Model # VF-2B
Serial # 29551
Year of manufacture- 8/2002’
Table working surface- 14” x 36”
Table travel, X-axis (longitudinal)- 30”
Table travel, Y-axis (cross)- 16’’
Vertical column travel (Z-axis)- 20’’
Minimum/Maximum distance, spindle nose to table- 4’’/24’’
Spindle taper- CAT-40
Spindle speeds- 0 – 7500 R.P.M.
Maximum weight on table- 3,000 Lbs.
Rapid feed rate on X, Y, & Z axes- 1000 I.P.M.
Maximum cutting feed rate- 300 I.P.M.
Number of tools in changer- 20
Maximum tool diameter- 3.5”
Maximum tool weight- 12 Lbs.
Equipped With
HAAS CNC Control
Control options- Rigid Tapping, DNC, M19 Spindle orient, Quick Code,
Machine hours -Servo Time 22,370, Motion Time 16,720, Spindle Time 17,646
Programmable coolant nozzle
2 Speed Gear Box Option
Prewired for 4th axis
24 tool side mount tool changer
Telescopic way covers
(6) Leveling pads
BIJUR automatic lubrication system
External coolant tank & Coolant pump
Chip Auger
20 H.P. spindle drive motor
Machine is wired for 460 Volt / 3 phase / 60 HZ
Machine weight- 7500 Lbs.
Machine dimensions- 88" L-R x 90" F-B x 96" H
Machine location- F.O.B. Sarasota, Florida
