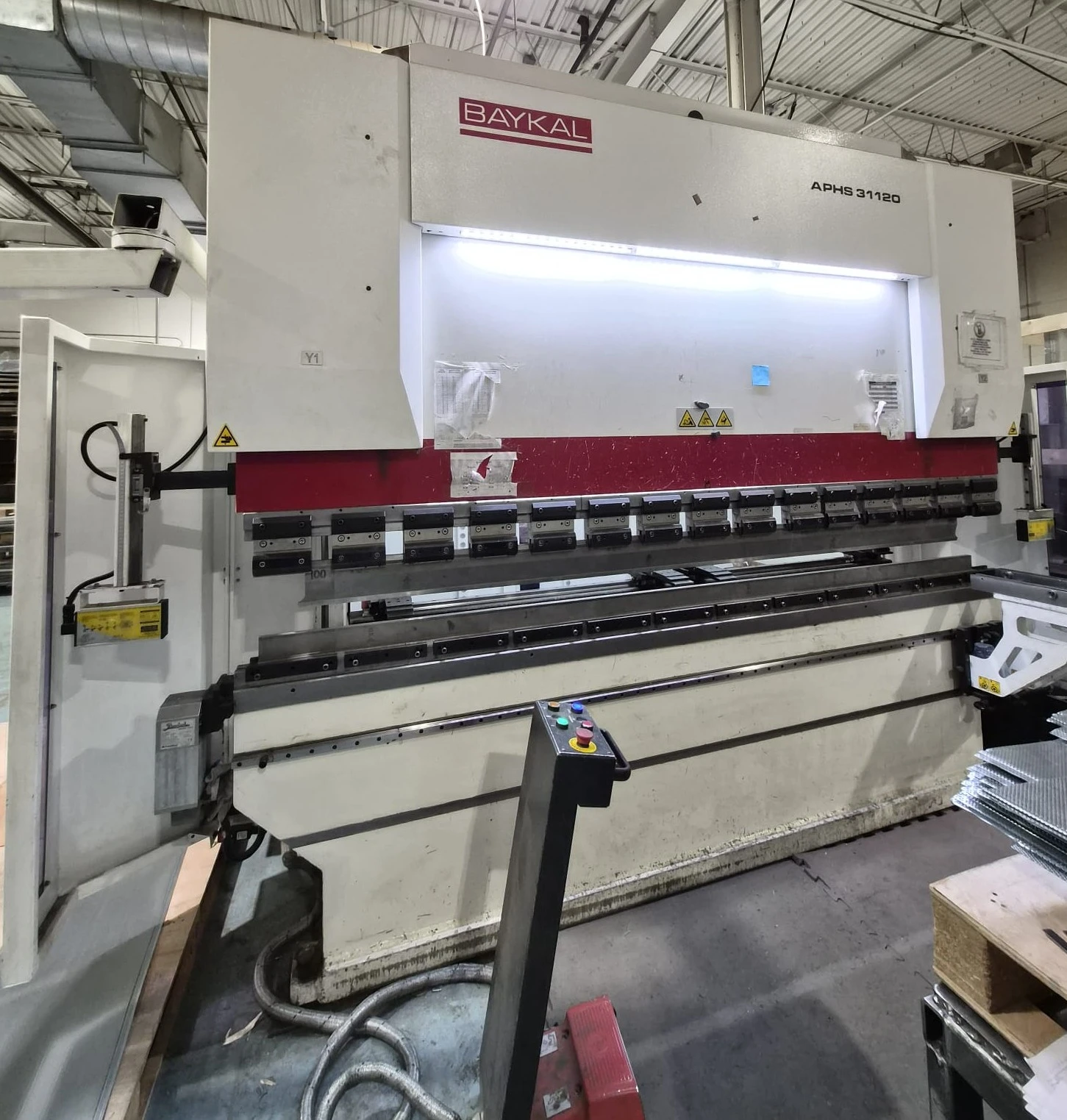

Baykal CNC Hydraulic Press Brake
Model: APHS 31120
Year: April 2018
Control: Delem DA 66 T
The Baykal APHS 31120 is a CNC hydraulic press brake designed for machining flat metal materials up to 3100 mm in length. It features a maximum bending capacity of 120 tons.
| Tonnage | 120 T | 108.862 t |
| Type | 'HYD' | 'HYD' |
| Overall Length | 120" | 3 m |
| Stroke | 10.236" | 259.99 mm |
| Control | CNC (Delem) | CNC (Delem) |
| Dimensions | 13.123ft x 5.906ft x 9.186ft | 13.123ft x 5.906ft x 9.186ft |
| Weight | 18518 lbs | 18518 lbs |
Baykal CNC Hydraulic Press Brake
Model: APHS 31120
Year: April 2018
Control: Delem DA 66 T
Technical Specification: (Subject to verifications)
Capacity: 120 Tons
Bending length: 3100 mm
Main Voltage: 575V/3 Ph
Nominal Power: 15 kW
System Pressure: 281 bar
Max stopping time: 80 ms
Max Stroke: 260 mm
Top Tool weight: 60Kg
Bottom Tool weight :100kg
Length : 4000mm
Width: 1800 mm
Height: 2800 mm
Machine weight: 8400 Kg
