New | in-Stock LAGUNA REVO 24|36 Woodworking Lathes | Martin's Woodworking Machinery #918519
New | in-Stock

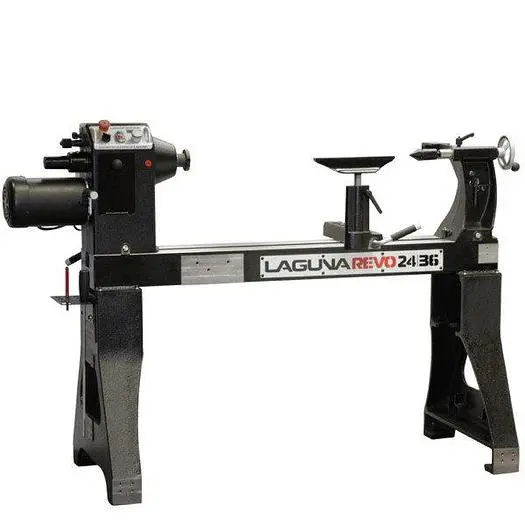

NEW LAGUNA REVO 24|36

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Martin's Woodworking Machinery
725Listings|5Followers
View seller profile
Overview
Woodworking Lathes
LAGUNAREVO 24|36

Wall Thickness of legs on the Revo 24|36 is 80% heavier compared to the Revo 18|36. Redesigned banjo features a more compact design, 45° cutout & wider base. Having a second control panel that mounts in two positions (high or low) sets the Revo 24|36 apart from any other lathe in the world, not only can you turn off the machine from this control panel, but it allows the operator to change speed as well. A switch on the back of the headstock designates whether you control the Revo from the headstock control panel or the corresponding control panel. The E Stop works on both at any given time. And YES, this amazing control panel comes standard with the Revo 24|36 Features: Motor: Induction, 1725 RPM, 3HP, 220V, 60Hz Phase: 1-Phase Input, 3-Phase Output VFD: Delta S1 Variable Frequency Drive Remote Control Box With Speed Settings Tailstock Storage Of Centers

Specs

Recommended Breaker Size: 15 Amp
Two Ergonomic Control Panel Positions: High/Low
Drive Belt: Poly-Groove With EZ Access
Tailstock Quill: 4-½″, Engraved, Self-Ejecting
Floor Top Spindle Center: 44-½″
Front Bearing: TPI Taiwan 6307LLU
Rear Bearing: TPI Taiwan 6205LLU
Spindle Index #: 14/36/48 with Lock
Distance Between Centers: 36″
Headstock Through-Bore: ⅜″
Toolrest Post Size: 1″
Spindle Size: 1-¼″ x 8 TPI RH
Floor To Bed: 32-½″ with Pads
Maximum Outboard Turning Diameter: 38″ (w/ Optional 20″ Extension Installed)
Swing Over Banjo: 19-¾″
Accepts Vacuum Chuck: Yes
Face Plate: 3″ Diameter
Tool Rest: 12″
Steel Bed: ASTM A36
Bed Gap: 50mm
Headstock Spindle: MT2 Taper Hardened To 40° HRC
Tailstock Quill: #2 MT
Swing Over Bed: 24″
RPM High: 135-3500
RPM Low: 50-1300
Dimensions (W x D x H): 60″ x 26″ x 52-¼″
Shipping Weight: 610 lbs
Shipping Dimensions (L x W x H): 36″ x 40″ x 50″
