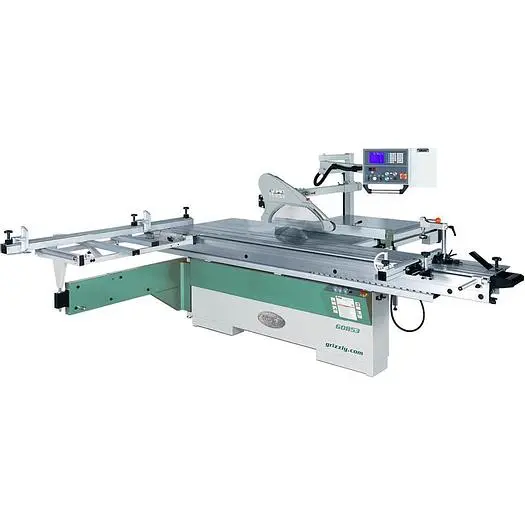

NEW GRIZZLY G0853

This saw was designed top-to-bottom for high-output production shops starting with its powerful 10 HP motor. The digital blade controls and programmable CNC rip fence maximize time savings and provide consistency. Safety and ease of operation are also factored in with dual operation stations—one on the right side of the table for when using the rip fence, and one on the left for when using the slider. The sliding table has a full 134" of crosscutting space and the rip fence allows a 51" rip—wider than a sheet of plywood! The overhead blade guard is enclosed and fully adjustable to maintain maximum protection around the saw blade with a 4" dust port. For busy shops who can't afford downtime, this machine will boost your production and pay for itself in no time. Made in an ISO 9001 factory FEATURES: Digital controls for main blade speed, tilt, scoring blade alignment, and rip fence adjustment Programmable CNC rip fence Accepts 12" and 14" blades Cross-slide table with eccentric locking clamp and hard chrome-plated slideway Easily adjustable blade guard with built-in dust hood Miter fence adjustable 30° left and 45° right Scoring blade virtually eliminates tear-out Sliding table on vertical guide system with precision bearing rollers *Prewired for 220V. If you require 440V operation, Grizzly must convert your machine at the time of purchase. A $250 non-refundable fee will be added to your order. Please allow extra shipping time for the conversion. If you need more information, please contact technical service.

Main motor: 10 HP, 220V/440V* (prewired for 220V), 3-phase, 26A/13A
Max. crosscut: 134" W x 121" L
Max. depth of cut at 90°: 4"
Max. depth of cut at 45°: 2-3/4"
Main table size with extensions: 59" x 68"
Floor space required: 271" W x 205" D
Overall size: 133" W x 147" D x 66" H
Scoring motor: 1 HP
Rip capacity: 51"
Blade tilt: 0-45°
Sliding table size: 15-5/8" x 126"
Main blade size: 14"/12"
Main blade arbor: 1"
Main blade speed: 3000, 4000, 5000 RPM
Scoring blade size: 4-3/4"
Scoring blade speed: 8000 RPM
Dust port sizes: 4", 5"
