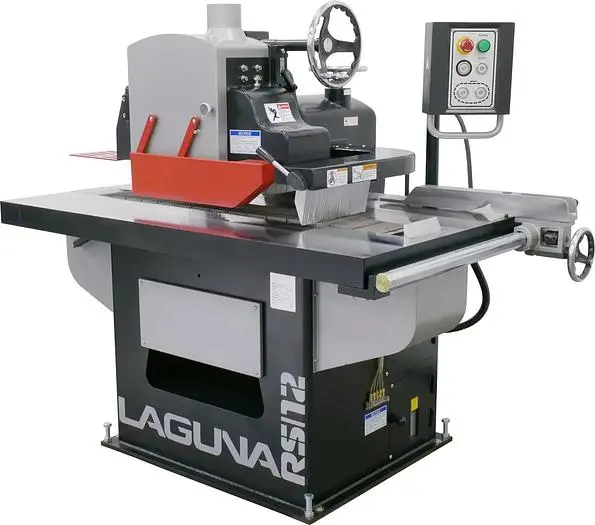

Laguna Tools, RS|12 Straight Line Rip Saw

The RS|12 is the perfect machine for production ripping operations. Automatic feed and centralized lubrication top the list of features on this machine. Optional laser guide-system available. Optional Laser Guide System Shown Overhead Controls: Standard Lubrication System: Centralized Automatic Variable Speed: 30 – 112 ft/min Min. Work Length: 6-1/2″ Blade Capacity: 10″ – 12″

Arbor Size: 1''
Power: 230V – 3 Phase
Main Motor: 15 HP
Maximum Work Thickness: 3-⅞″
Hold Down Rollers: 4
Dust Port Diameter: 4″
Weight (Net): 2,420 lbs.
Feed Chain: 6″ High Grip
Blade To Frame: 18″
Shipping Dimensions (L x W x H): 60″ x 48″ x 62″
