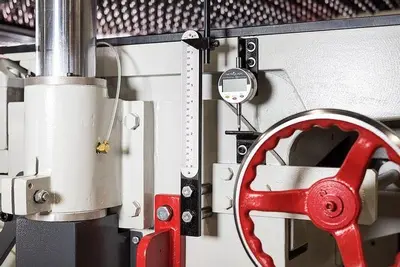

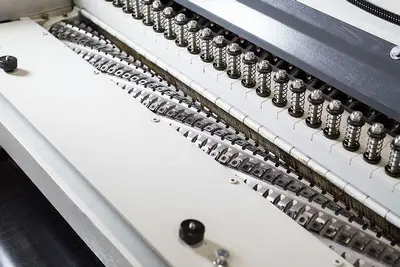

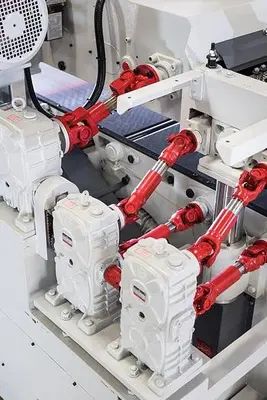

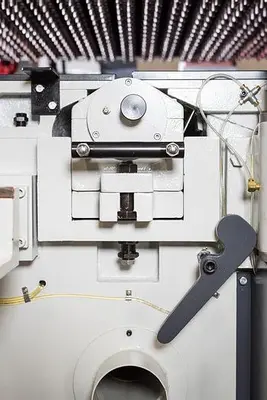

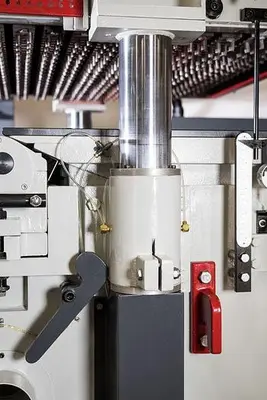

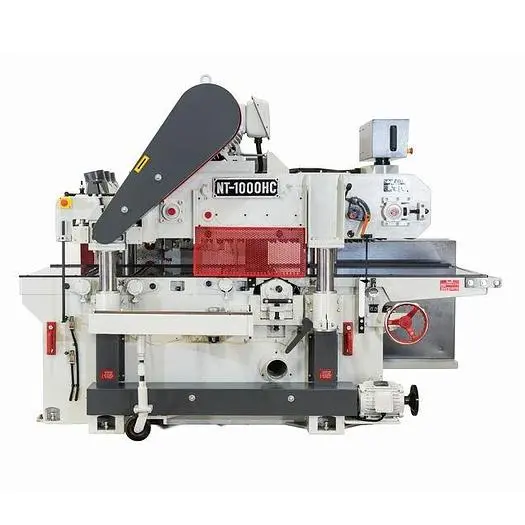

The NT 1000HC is our 41″ width double surfacer with 8″ thickness capability. Double surfacers, some times referred to as 2 sided planers are used to size the thickness of wood and other dense materials such as plastic. The top and bottom helical cutter head uses two sided 30x12x2.5 carbide insert cutters for a moulder smooth finish, even with heavy stock removal. The powered top and bottom feed system is designed with integrated rollers in the chrome bed and a spring loaded overhead carpet spike infeed with a gearbox connected carden shaft drive. The carden shaft drive delivers a slack free feed with out the common chain adjustments. The jointer table infeed and overhead spring loaded carpet spike system allows this machine to not only size the thickness, but also straighten warped or crooked material. The top head is easily accessible for tooling changes by removing the dust hood and the bottom head pulls out of the machine completely in just a couple of minutes for full access. The upper assembly is supported by a (4) column slide system that provides precision thickness sizing across the entire width and has digital thickness positioning control. Northtech Double surfacers are available in 16″-52″ working widths with up to a 24″ working thickness and can be offered with a safety/sound enclosure. CUTTER HEADS

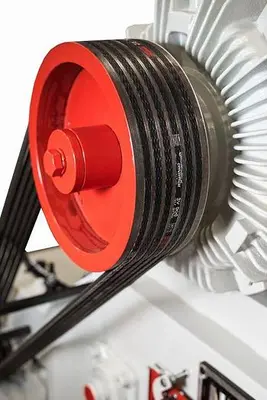

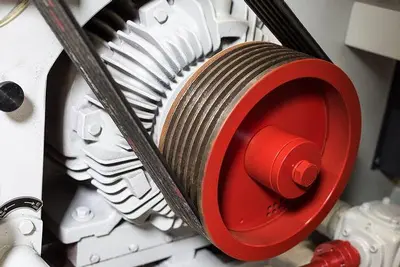

• 75 HP Top, 60 HP Bottom
• Dual (9) Row Helical Cutter head with 15 x 15 x 2.5mm inserts
• 4925 RPM solid steel cutter heads dynamically balanced with Class 7 NSK bearings
PRODUCT DIMENSIONS
• 15” min working length
• 1-1/2” - 41” working width
• 3/8” - 8” working thickness
FEED SYSTEM

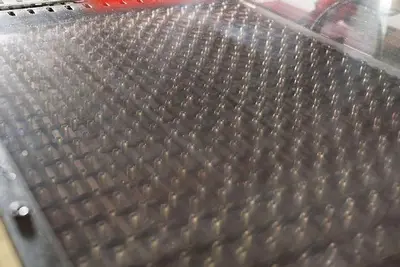

• Carpet feeding spike system with 1,900 hardened spikes
• 7.5 HP motor, with 10 HP inverter controlled 15-55 FPM feed
• 1000 Series have upgraded feed works, with top and bottom
powered rollers on infeed and outfeed of top cutter head
FEATURES
• 144.5 Total machine HP
• 2HP Elevation motor
• Inverter speed control
• Digital control panel with 3 amp meters
• Chrome bed plate (.014”) thick
• (2) 6” dust ports requiring 981 CFM at points of extraction
• Automatic lubricating system with low level shut off
• UL/CE Certified electrical components
• Includes operator’s manual and parts book
• Machine gross / net weight: 15,600 lbs. 16,100 lbs.
• Machine dimensions: 112”(L) x 88”(W) x 83”(H)
• One year parts warranty
• All machines are tested at the factory prior to shipment providing trouble-free start up.
Top Head Hp.: 75 Hp.
Bottom Head Hp.: 60 Hp.
VOLTAGE, FREQUENCY: 230/460 Volt 60HZ
PHASE: 3 Phase
AMP REQUIREMENT: 170 / 340 Amps
FEED HP: 7.5 HP
DRIVE SYSTEM: Cardan Shaft Drive System
FEED SPEED RANGE: 30-90 FPM
VARIABLE FEED SPEED: Inverter Controlled
ELEVATION HP: 2 HP
ELEVATION STYLE: DP-626S Elevation Control
ELEVATION SYSTEM: (4) Post Jack Screw
TOTAL MACHINE HP: 144.5 HP
APPROVED ELECTRICAL PARTS: CE Approved Components
DUAL VOLTAGE MOTORS: 230/460 Volt
CONTROL VOLTAGE: 110 Volt
PROGRAMABLE: Elevation
ADJUSTABLE OPERATOR PANEL: Adjustable Operator Panel
PASS-LINE: 34''
MIN. WORKING LENGTH: 15''
MAX. WORKING WIDTH: 39-1/2''
MIN. WORKING THICKNESS: .415''
MAX. WORKING THICKNESS: 8''
CUTTER HEAD RPM: 5000 RPM
HEAD TYPE: Dynamically Balanced Helical Head
CUTTER HEAD DIMENSIONS: 5'' x 39-3/4''
CUTTER HEAD MATERIAL: Alloy Steel
ROWS OF CUTTERS: 9 Rows
NO. OF INSERTS: 798 Inserts
NO. OF HEADS: (2) Heads
DIGITAL DISPLAY: Elevation / Feed Speed
HOLD DOWN STYLE: Chip Breakers/ Pressure Plate
CARPET SPIKE HARDNESS: HRC 45
NO. OF SPIKES: 1900
FLR INCLUDED: Filter, Lubricator, Regulator
REAR E STOP: Push Button
GUARDING: High Visibility Guarding
CHROME BED PLATE: .004'' Chrome Plated Bed
DECIBEL RATING: 80 dB
NET WEIGHT: 15600 Lbs.
GROSS WEIGHT: 16100 Lbs.
