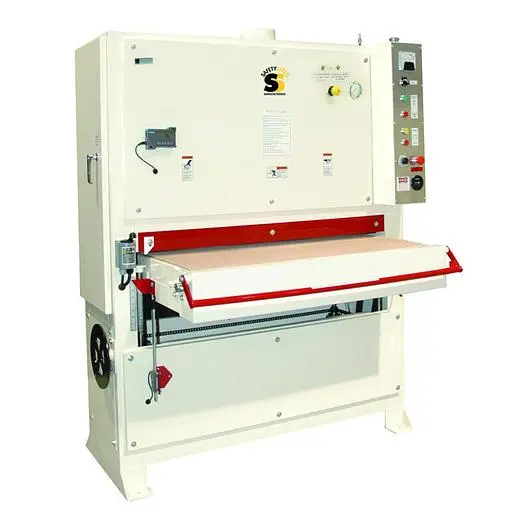

NEW SAFETY SPEED 4375

The 43″ Wide Belt Sander features a 75” belt, providing 25% more abrasive surface than the smaller 60” belt machines. The larger belt translates to increased capacity, less heat accumulation, less maintenance and fewer belt replacements. With a fully adjustable platen these sanders will deliver a perfect smooth finish every time. Standard Equipment  Photo electric belt tracking. Pneumatic belt tension. 2 ½” graphite covered felt pad and adjustable platen. 2 rubber-covered pinch rollers 2 ½” OD. 2 machined idler rollers 4 ¼” OD with 1″ bearings. Rubber-covered contact roller 5 ¼” OD with 1 ⅝” drive bearing. Conveyor table set on four 1″ acme thread jackscrews. 2 height adjustment indicators. 6″ internal dust chute. 5 emergency stops. 3 year warranty. Weight 1946 lbs Dimensions 60 × 62 × 71 in Max. Working Length Unlimited Min. Working Length 12"/305mm Main Motor Options 10 Hp, Single Phase (1~), 220 Volt, 20 Hp, 3 Phase (3~), 208 Volt / 230 Volt, 30 Hp, 3 Phase (3~), 208 Volt / 230 Volt Max. Working Width 42"/1070mm Max. Working Thickness 7 1/4"/184mm Min. Working Thickness 1/8"/3mm Vacuum Requirement 1000 CFM Conveyor Speed 0-18 FPM Durometer of Contact Roller 60 Sanding Belt Size 43" x 75" Sanding Belt Width 43" Sanding Belt Length 75"
