The NT-EM250 is our automatic 10″ working width feed through end matcher. The feed through design allows for simultaneously processing of both the tongue and groove end to two random length parts upon a single tool stroke. This provides an extremely efficient operation especially when connected to an automatic defect saw. NT EM250 Linear End-Matcher
MECHANICAL
• Dual 5HP spindle motors 230, 3PH, 60 HZ

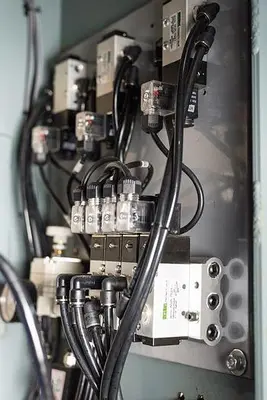

• 12 CFM @ 90 PSI required
• (1) 6” dust ports requiring 981 CFM @ point of extraction
PRODUCT INFORMATION:
• Width: 1-1/2” - 10”
• Thickness: 3/8” - 1-3/8”
• Length: 11” - unlimited
• Maximum Weight of Lumber: 32lbs
FEATURES:
• 40mm spindles inside precision bearing
• 1HP PLC controlled feed system manages spindles position, part location and
both infeed and outfeed hold downs
• Feed Speed: 80 - 400 FPM
• Pancake style T & G heads, utilize carbide insert replacements for exacting repeatability (Included)
• Dual lineal shaft guides for head movement
• Touchscreen interface with production tracking
• Chrome plated table
• 134” Powered infeed and 88” outfeed

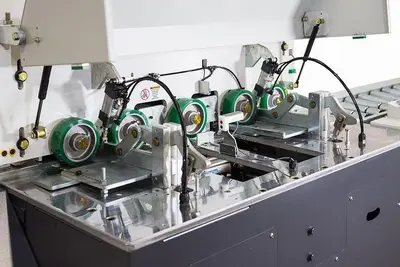

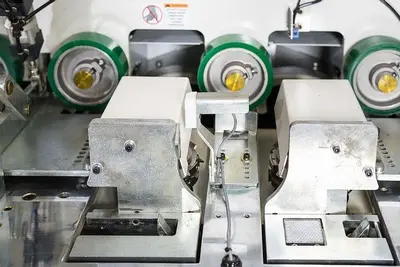

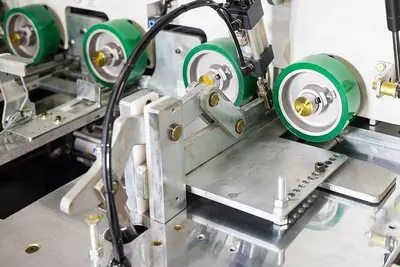

• Infeed and outfeed with dual action clamping system with (5) powered urethane rollers
• (3) Spring loaded bed rollers
• FLR included
• Fully automatic cycle operation
• Processing speed: 75’ / minute *Based on 6’ material length
• Net weight: 2,559 lbs.
• Machine dimensions without infeed / outfeed: (L) 72" x (W) 33" x (H) 55"
• Packing dimensions: (L) 78" x (W) 39" x (H) 63"
• (1) Tool box
• Warranty is one year parts
• All machines are tested stateside prior to shipment providing trouble free start up.
MAIN MOTOR HP: (2) 5 HP Motors
VOLTAGE, FREQUENCY: 230/460 Volt 60Hz
PHASE: 3 Phase
AMP REQUIREMENT: 19.5 / 39 Amps
1ST STATION: Tongue
2ND STATION: Groove
SPINDLE LENGTH: 5''
SPINDLE DIAMETER: 40 MM
SPINDLE RPM: 7410 rpm

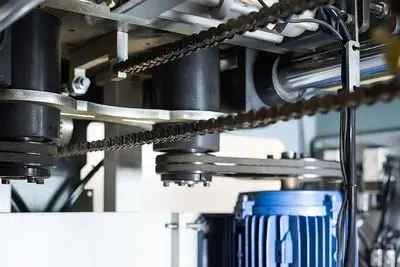

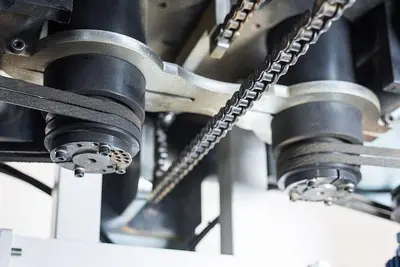

FEED SYSTEM: (4) Feed Wheels

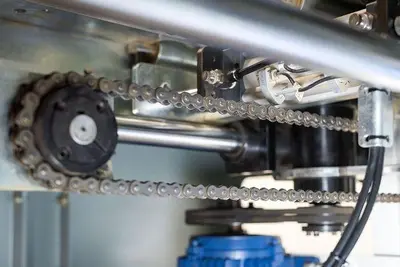

DRIVE SYSTEM: Gear Driven
FEED SPEED RANGE: 80 - 400 FPM
VARIABLE FEED SPEED: Inverter Controlled
TOTAL MACHINE HP: 12.5 hp.
APPROVED ELECTRICAL PARTS: CE Approved Components
CONTROL VOLTAGE: 24 Volt
TOUCH SCREEN: 5-1/2'' Touch Screen
PASS-LINE: 35-3/4
MIN. WORKING LENGTH: 10.63''
MIN. WORKING WIDTH: 1-1/2''
MAX. WORKING WIDTH: 10''
MIN. WORKING THICKNESS: .393
MAX. WORKING THICKNESS: 1.375''
DUST PORT SIZE OUTLET: (1) 6'' Port
CONVEYOR: Powered Infeed Conveyor
IDLE ROLLERS: (3) Idle Bed Rollers
TOTAL CLAMPS: (2) Clamps
FLR INCLUDED: Filter, Lubricator, Regulator
EMERGENCY STOP: Push Button
GUARDING: Full Cabinet Enclosure
OPERATION STYLE: Touch Screen Control
FENCE TYPE: Fixed Fence
FRAME CONSTRUCTION: Steel Construction
WORKTABLE DIMENSIONS: 23-1/2'' x 55-1/4''
TABLE CONSTRUCTION MATERIAL: Steel
INFEED TABLE LENGTH: 133-1/2'' Infeed
OUTFEED TABLE LENGTH: 87-1/2'' Outfeed
CHROME BED PLATE: .004'' Chrome Plated Bed

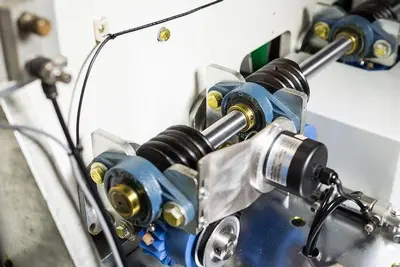

MEASURING METHOD: Precision Encoder
AUTO CYCLE: Yes
DECIBEL RATING: 76 dB
NET WEIGHT: 2559 Lbs.
GROSS WEIGHT: 2734 Lbs.
