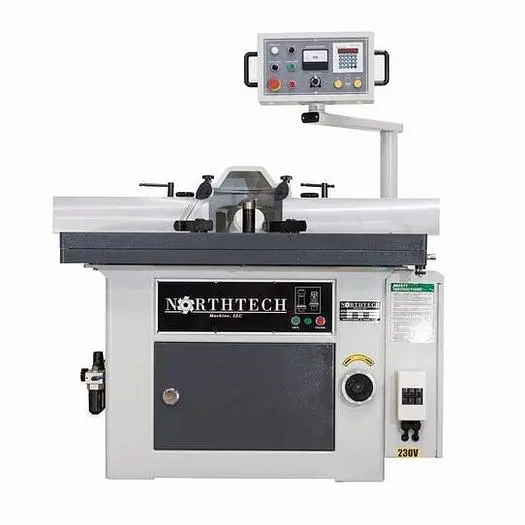

Northtech, NT 770HSK Spindle Shaper

NT 770HSK Spindle Shaper

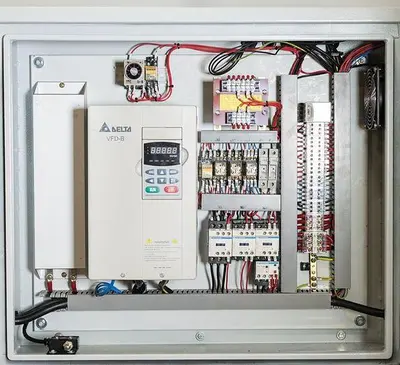

• 3,000 - 13,350RPM, 10HP inverter controlled spindle

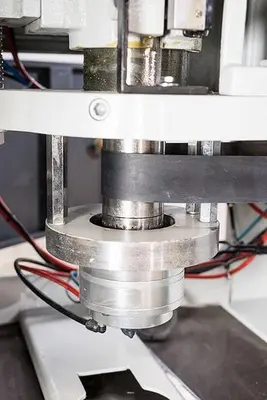

• (1) 1-1/4'' x 4’’ HSK-63F spindle included
• HSK-63F spindle release system is developed by Andi CNC Machining Centers
• Spindle tolerance of .0001" *
• Includes sensor light to ensure proper mating of the
chucks as well as correct full pneumatic pressure for safety
• Moveable overarm control panel
• 35" Ergonomically designed precision milled table
• (1) Tool box
• Warranty is one year parts
• All machines are tested stateside prior to shipment providing trouble free start up.

Main Motor: 10 HP
Reverse Motor: Reversible
Machine Hp: 11 HP
Voltage/ Freq.: 230/460 Volt 60Hz
Phase: 3 Phase
Amp Requirement: 30/15 Amps
1st Spindle: 1-1/4'' x 4'' Spindle
Spindle RPM: 13350 Rpm Adjustable
Under Nut Cap: 4-1/4''
Elevation Hp: 1 HP
Elevation Style: Push Button

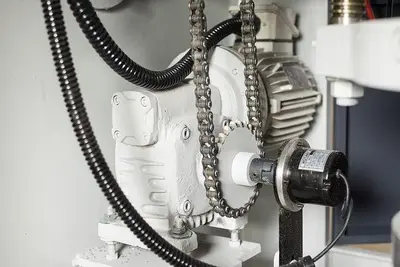

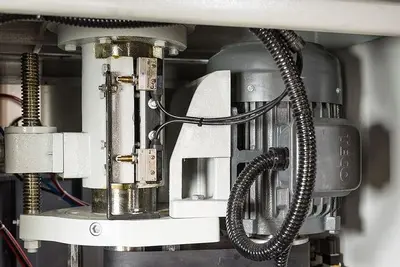

Elevation Sys: Jack Screw / Quill Housing
Electronics: CE Approved Components
Control Voltage: 110 Volt
Programmable: Elevation
Operator Panel: Adjustable Operator Panel
Pass-Line: 35''
Vertical Travel: 4-1/8'' Spindle Travel
Dust Collection: (1) 4'' (1) 5'' @ 1117 CFM
FLR Included: Filter, Lubricator, Regulater
Recommended CFM: 1/4'' Line @ 90 PSI
Emergency Stop: Push Button
Fence Type: Adjustable
Fence Dimensions: (2) 5-1/2'' x 24''
Micro Fence: Micro Adjustable
Brake System: Electronic Braking
Frame Construction: 3/16'' Steel Construction
Worktable Dimensions: 38'' x 51''
Table Construction: Cast Iron
Decible Rating: 83dB
Net/Ship Weight: 1650/1850 lbs.
Dimensions Set Up Approx.: 54'' x 42'' x 66-1/4''
Shipping Dimensions (L x W x H): 59'' x 45'' x 75''
