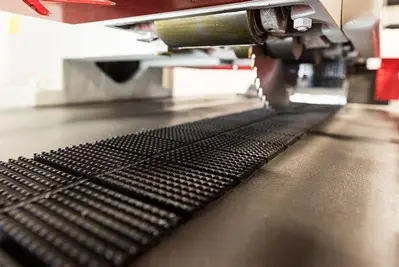

Northtech Straight Line Rip Saws provide accurate straight cuts for glue ups and blank production. The NT-SRS12NS is a top arbor Straight Line Rip Saw with a 15HP drive. This is our most compact and economical model Straight Line Rip Saw. NT SRS-12NS Straight Line Ripsaw
• 15HP Motor + 1HP feed motor (with Wye Delta soft start)
• Mechanical variable speed (30' - 110' / min) provides a
speed range for all material types and thickness ranges
(¼" - 3 ¼").
• Bottom & top kickback fingers
• Rack and pinion fence for precise and quick positioning.
• Digital electronic oiler provides maximum chain and race life.
• 15-1/2" distance from column to blade.
• 8' glue line tolerance.
• Industrial series 10mw laser is included with steel bracket.
• 12" x 52T laser cut precision blade is included.
• Motors and controls are with UL and CE approved
components.
• (1) Tool box
• Warranty is one-year parts
• All machines are tested stateside prior to shipment providing trouble free start up.
MAIN MOTOR HP: 15 HP
VOLTAGE, FREQUENCY: 230/460 Volt 60HZ
PHASE: 3 Phase
AMP REQUIREMENT: 13/26 Amps
FEED HP: 1 HP
FEED SYSTEM: 5-1/2'' 50 Pad Steel Chain
FEED SPEED RANGE: 45 - 100 FPM
VARIABLE FEED SPEED: Manual Lever Adjustment
ELEVATION SYSTEM: Jack Screw / Linear Guides
ELEVATION STYLE: Manual Wheel Adjustment
TOTAL MACHINE HP: 16 Hp.
APPROVED ELECTRICAL PARTS: CE Approved Components
DUAL VOLTAGE MOTORS: 230/460 Volt
CONTROL VOLTAGE: 220V Control Voltage
ASSISTED START: Wye Delta Arbor Motor
PASS-LINE: 32''
MIN. WORKING LENGTH: 10'' 2nd Roller to Kickback
MAX. WORKING WIDTH: 15-1/2''
MAX. WORKING THICKNESS: 3-1/2''
GLUE LINE RIP: Guaranteed 8' 4/4 stock @ 50 FPM
ARBOR RPM: 4790 RPM
BLADE SIZE: 12'' Tungsten Carbide Tipped
NO. OF TEETH ON BLADE: 50 Tooth
TOOTH SPACING: 3/4''
BLADE KERF: .157
DUST PORT SIZE OUTLET: (1) 5'' Port
ARBOR DIAMETER: 1''
HOLD DOWN STYLE: (6) Spring Loaded Hold Downs
KICKBACK FINGERS: Top/Bottom Kickback Fingers
SAFETY FEATURE: Sawblade Door Safety Interlock
OILER: Auto Oiler
LOW OIL WARNING/SHUT OFF: Low Oil Alarm
FENCE TYPE: Industrial Cam Lock Quick Release
FENCE DIMENSIONS: 1-3/4'' x 27''
FRAME CONSTRUCTION: Cast Construction
WORKTABLE DIMENSIONS: 31'' x 49-3/8''
TABLE CONSTRUCTION MATERIAL: Cast Iron
LASER INCLUDED: 100mw Laser Light & Mount Bracket
DECIBEL RATING: 86 dB
NET WEIGHT: 1790 Lbs.
GROSS WEIGHT: 2018 Lbs.
MACHINE DIMENSIONS: 66'' x 38'' x 73''
PACKAGING DIMENSIONS: 57'' x 44'' x 61''
