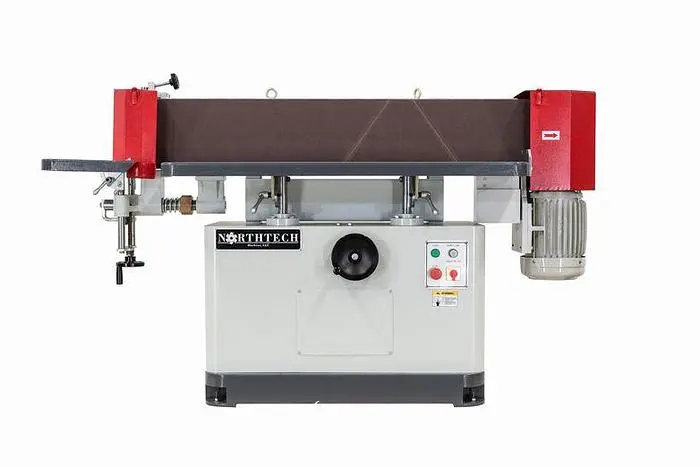

NT-ES948SE EDGE SANDER SINGLE TABLE Northtech offers a large family of industrial grade edge sanders. The NT-ES948SE falls into the middle of the family of edge sanders and has a 9″x48″ sanding area on one side of the machine along with an end table for smaller and contoured sanding work. The single table design allows a centrally located control panel that is easily accessible. Chrome side tables are tiltable to 45 degrees and are on a gear driven elevation system making it easy to take advantage of full use of the sanding belts on smaller parts. The electronic oscillation and heavy duty cast iron frame provide a vibration free base and heavy stock removal capability.
MACHINE HP: 5 HP
DIRECT DRIVE (MOTOR): Motor to 7'' x 9-5/8'' Pulley
VOLTAGE, FREQUENCY: 230/460 Volt 60Hz
PHASE: 3 Phase
AMP REQUIREMENT: 15/7.5 Amps
ELEVATION STYLE: Manual Wheel Adjustment
ELEVATION SYSTEM: (2) Post Jack Screw
APPROVED ELECTRICAL PARTS: CE Approved Components
DUAL VOLTAGE MOTORS: 230/460 Volt
CONTROL VOLTAGE: 24 Volt Control Voltage
PASS-LINE: 32''
MAX. WORKING LENGTH: 48''
MAX. WORKING WIDTH: 9''
SANDPAPER SIZE: 9'' x 134''
PLATEN SPECIFICATIONS: 9'' x 48''
1st BELT SPEED: 3300 FPM
OSCILLATION STYLE: Gear Box with Cam
OSCILLATION RATE: 30 Cycles/Minute
OSCILLATION TRAVEL: 1/2''
TRACKING STYLE: Manual Knob Adjustment
TENSION STYLE: Manual Knob Adjustment
VERTICAL TRAVEL: 5-3/4'' Table Adjustment
DUST COLLECTION REQUIREMENT: 436 CFM @ Extraction Points
DUST PORT SIZE OUTLET: (2) 4''
EMERGENCY STOP: Push Button
GUARDING: High Visibility Guarding
FENCE TYPE: Jig Fence
FRAME CONSTRUCTION: 1/4'' Steel Construction
END TABLE DIMENSIONS: 13-3/4'' x 16-1/2''
WORKTABLE DIMENSIONS: 10-1/2'' x 48''
TABLE CONSTRUCTION MATERIAL: Chromed Steel
DECIBEL RATING: 72 dB
NET WEIGHT: 696 Lbs.
GROSS WEIGHT: 870 Lbs.
MACHINE DIMENSIONS: 76'' x 25-1/2'' x 45-1/2''
PACKAGING DIMENSIONS: 81'' x 30'' x 53
