NEW NORTHTECH NT 12-1300R

While Northtech Wide Belt Sanders have been trusted for decades in wood shops of all sizes, the 12-series machines are designed for industrial production use. The NT-12-1300R is a single head wide belt sander with over 50″ of working width that is designed for multishift operations with added safety features and a massive fabricated steel frame. The single contact drum configuration provides a wide width in a small footprint. Available in a bottom series with 85″ or 103″ belts, brush cleaner, and programable oscillating belt cleaners.

VOLTAGE, FREQUENCY: 230/460 Volt 60 Hz
PHASE: 3 Phase
AMP REQUIREMENT: 26.5 / 53
CONFIGURATION: Roller
1st HEAD: 40 HP 12'' Spiral Fluted Steel Drum
BRUSH MOTOR HP: 1 HP
FEED HP: 3 HP
FEED SYSTEM: 51'' Rubber Feed Mat
DRIVE SYSTEM: Motor to Gear Box
FEED SPEED RANGE: 15 - 63 FPM
VARIABLE FEED SPEED: Inverter Controlled
ELEVATION HP: 1 HP
ELEVATION STYLE: Touch Screen Inverter Controlled
ELEVATION SYSTEM: (4) Post Jack Screw
TOTAL MACHINE HP: 45 HP

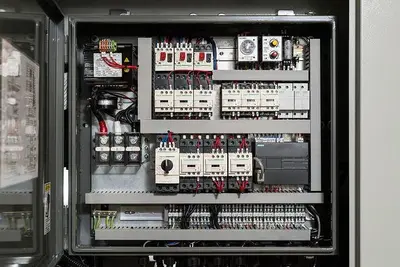

APPROVED ELECTRICAL PARTS: CE Approved Components
DUAL VOLTAGE MOTORS: 230/460 Volt
CONTROL VOLTAGE: 220 Volt
PROGRAMABLE: Elevation
TOUCH SCREEN: 7'' Touch Screen
MIN. WORKING LENGTH: 16''
MAX. WORKING WIDTH: 51''
MIN. WORKING THICKNESS: .196''
MAX. WORKING THICKNESS: 4.75''
SANDPAPER SIZE: 51'' x 103''
1st BELT SPEED: 4725 FPM
OSCILLATION STYLE: Photo Eye
OSCILLATION RATE: (20) Cycles Per Minute Adjustable
OSCILLATION TRAVEL: 1/2''
CLEANING SYSTEM: Oscillation Jet Blow Off

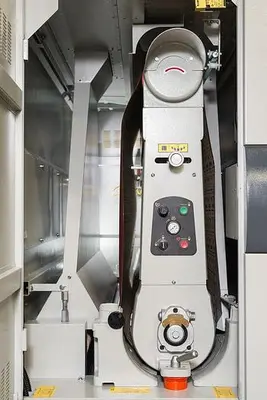

TRACKING STYLE: Pneumatic Cylinder
TENSION STYLE: Pneumatic Cylinder
DUST PORT SIZE OUTLET: (6) 5'' Ports
DIGITAL DISPLAY: Feed Speed
CONVEYOR: 51'' Feed Mat
HOLD DOWN STYLE: Pressure Shoe / Rubber Rollers
FLR INCLUDED: Filter, Regulator, Lubricator
CFM AIR SUPPLY REQUIREMENT: 3/8'' Line @ 90 PSI
EMERGENCY STOP: (2)
GUARDING: Full Enclosure

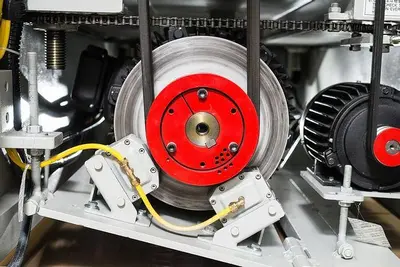

BRAKE SYSTEM: Dual Caliper Pneumatic Brakes
FRAME CONSTRUCTION: Steel / Cast
MEASURING METHOD: Encoder
DECIBEL RATING: 74 dB
NET WEIGHT: 6600 Lbs.
GROSS WEIGHT: 7480 Lbs.
MACHINE DIMENSIONS: 84'' x 78'' x 92''
PACKAGING DIMENSIONS: 91'' x 90'' x 99''
