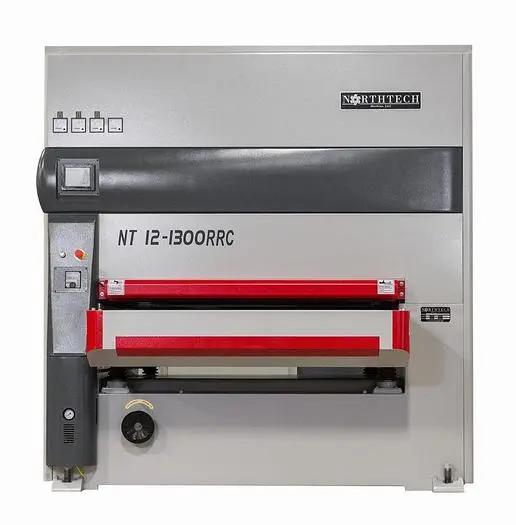

NEW NORTHTECH NT-12-1300RRC

While Northtech Wide Belt Sanders have been trusted for decades in wood shops of all sizes, 12-series machines are designed for industrial production use. The NT-12-1300RRC is a three head wide belt sander with over 50″ of working width that is designed for multishift operations with added safety features and a massive fabricated steel frame. The configuration of 12″ Roller-RollerCombination allows for aggressive stock removal and a smooth stain ready finish in one pass. Available in a bottom series and planer series with 85″ or 103″ belts, brush cleaner, and programable oscillating belt cleaners.

VOLTAGE, FREQUENCY: 230/460 Volt 60 Hz
PHASE: 3 Phase
AMP REQUIREMENT: 274 / 137 Amps
CONFIGURATION: Roller Roller Combination
1st HEAD: 40 HP 12'' Spiral Fluted 70 Durometer
2nd HEAD: 40 HP 12'' Spiral Fluted 65 Durometer
3rd HEAD: 30 HP 6'' Roller and Platen Combination Head
BRUSH MOTOR HP: 1 HP
FEED HP: 5 HP
FEED SYSTEM: 51'' Rubber Feed Mat
DRIVE SYSTEM: Motor Gear Box
FEED SPEED RANGE: 14-63 FPM
VARIABLE FEED SPEED: Inverter Controlled
ELEVATION HP: 1 HP
ELEVATION STYLE: Digital Touch Screen
ELEVATION SYSTEM: (4) Post Jack Screw
TOTAL MACHINE HP: 117 HP
APPROVED ELECTRICAL PARTS: CE Approved Components
DUAL VOLTAGE MOTORS: 230/460 Volt
CONTROL VOLTAGE: 220 Volt
TOUCH SCREEN: 7'' Touch Screen
MIN. WORKING LENGTH: 20''
MAX. WORKING WIDTH: 51''
MIN. WORKING THICKNESS: .198''
MAX. WORKING THICKNESS: 4.75
SANDPAPER SIZE: 51'' x 103''
PLATEN SPECIFICATIONS: 4'' x 54''
1st BELT SPEED: 5000 FPM
2nd BELT SPEED: 5000 FPM
3rd BELT SPEED: 3000 FPM
OSCILLATION STYLE: Photo Eye
OSCILLATION RATE: (20) Cycles Per Minute Adjustable
OSCILLATION TRAVEL: 1/2''
CLEANING SYSTEM: Oscillating Jet Blow Off
TRACKING STYLE: Pneumatic Cylinder
TENSION STYLE: Pneumatic Cylinder
DUST COLLECTION REQUIREMENT: 681 CFM @ Extraction Points
DUST PORT SIZE OUTLET: (14) 5'' Ports
DIGITAL DISPLAY: Feed Speed
CONVEYOR: 51'' Rubber Feed Mat
IDLE ROLLERS: (12) Hold Down Rollers
PRESSURE SHOES: (4) Pressure Shoes
HOLD DOWN STYLE: Rollers / Shoes
FLR INCLUDED: Filter, Regulator, Lubricator
CFM AIR SUPPLY REQUIREMENT: 3/8'' Line @ 90 PSI
EMERGENCY STOP: (2)
GUARDING: Full Enclosure
BRAKE SYSTEM: Dual Caliper Pneumatic Brakes
FRAME CONSTRUCTION: Steel / Cast
TABLE CONSTRUCTION MATERIAL: Steel
MEASURING METHOD: Encoder
DECIBEL RATING: 79 dB
NET WEIGHT: 15875 Lbs.
GROSS WEIGHT: 165000 Lbs.
MACHINE DIMENSIONS: 102 x 86'' x 93''
PACKAGING DIMENSIONS: 120'' x 91'' x 94''
