The 525S shaper is a powerful strong, heavy duty built shaper with a sliding table. The 525S series features a large stable base, quick adjust spindle elevation control, and lockable sliding table. The oversized precision ground table on solid steel cabinet provides stable vibration free milling. The 5HP 4-speed interchangeable spindle provides flexibility for customer specific applications.
MACHINE HP: 5 HP
VOLTAGE, FREQUENCY: 230/460 Volt 60Hz
PHASE: 3 Phase
AMP REQUIREMENT: 13 / 6.5 Amps
1ST SPINDLE: 1-1/4'' x 6''
SPINDLE LENGTH: 6''
SPINDLE DIAMETER: 1-1/4''

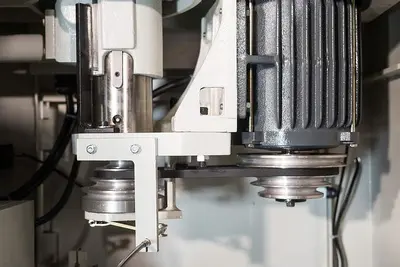

SPINDLE RPM: 3000, 4000, 6000, 9800 RPM
UNDER THE NUT CAPACITY: 5''
ELEVATION STYLE: Manual Wheel Adjustment
ELEVATION SYSTEM: Quill Housing / Jack Screw
APPROVED ELECTRICAL PARTS: CE Approved Parts
DUAL VOLTAGE MOTORS: 230/460 Volt
CONTROL VOLTAGE: 110 Volt
PASS-LINE: 34-3/8''
MAX. WORKING THICKNESS: 5''
VERTICAL TRAVEL: 6'' On Spindle
DUST COLLECTION REQUIREMENT: 436 CFM @ Extraction Points
DUST PORT SIZE OUTLET: (1) 4''

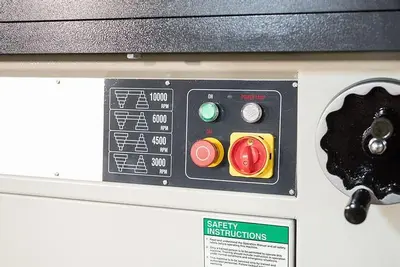

EMERGENCY STOP: (1) Front
GUARDING: Fence Assembly
OPERATION STYLE: Manual
FENCE DIMENSIONS: (2) 5'' x 17'' Fences
MICRO FENCE: Micro Adjustment
FRAME CONSTRUCTION: Steel Construction
WORKTABLE DIMENSIONS: 35-1/2'' x 27-1/2''
TABLE CONSTRUCTION MATERIAL: Machined Cast Iron
DECIBEL RATING: 70 dB
NET WEIGHT: 762 Lbs.
GROSS WEIGHT: 850 Lbs.
MACHINE DIMENSIONS: 36'' x 29'' x 43''
PACKAGING DIMENSIONS: 51'' x 32'' x 49''
