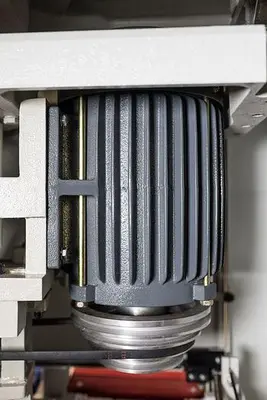

MAIN MOTOR HP: 15 HP.
REVERSIBLE MOTOR: Reversible
VOLTAGE, FREQUENCY: 230/460 Volt 60Hz
PHASE: 3 Phase
AMP REQUIREMENT: 18 / 36 Amps
SPINDLE DIAMETER: 1-1/4''
UNDER THE NUT CAPACITY: 5-1/2''
ELEVATION STYLE: Manual Wheel
ELEVATION SYSTEM: Jack Screw / Quill Housing

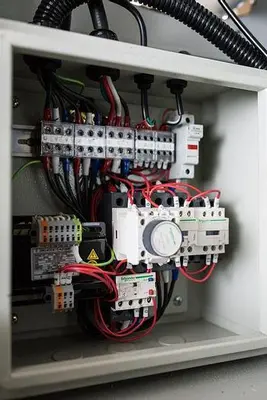

APPROVED ELECTRICAL PARTS: CE Approved Components
DUAL VOLTAGE MOTORS: 230/460 Volt
CONTROL VOLTAGE: 110 Volt
ADJUSTABLE OPERATOR PANEL: Adjustable Operator Panel
PASS-LINE: 35-1/2''
VERTICAL TRAVEL: 5-1/2''
DUST PORT SIZE OUTLET: (1) 5'' Port
DUST COLLECTION REQUIREMENT: 681 CFM @ Point of Extraction
DIGITAL DISPLAY: Elevation / Spindle Tilt
EMERGENCY STOP: Push Button
FENCE TYPE: Adjustable
FENCE DIMENSIONS: (2) 5-3/4'' x 23-3/4''
MICRO FENCE: Micro Adjustment
TILT-ABLE: 45 Degree Tilt
BRAKE SYSTEM: Foot Pedal Brake
FRAME CONSTRUCTION: Steel Construction
WORKTABLE DIMENSIONS: 36-1/4'' x 60-3/4''
TABLE CONSTRUCTION MATERIAL: Cast
DECIBEL RATING: 71 dB
NET WEIGHT: 1704 Lbs.
GROSS WEIGHT: 1907 Lbs.
MACHINE DIMENSIONS: 61'' x 47'' x 63-1/2''
PACKAGING DIMENSIONS: 66'' x 52'' x 71''
