The NT 735LT shaper is our heavy duty 735 series machine with an extended table. An excellent option when profiling longer product. The powerful 10hp interchangeable 4 speed spindle with a large stable base, foot operated brake for quick spindle stop and a foot operated lock for easy tool changes, provides excellent customer capability . The oversized precision ground table on solid steel cabinet provides stable vibration free milling.
MACHINE HP: 10 HP
VOLTAGE, FREQUENCY: 230/460 Volt 60Hz
PHASE: 3 Phase
AMP REQUIREMENT: 12/12.5 Amps
SPINDLE LENGTH: 6''
SPINDLE DIAMETER: 1-1/4''

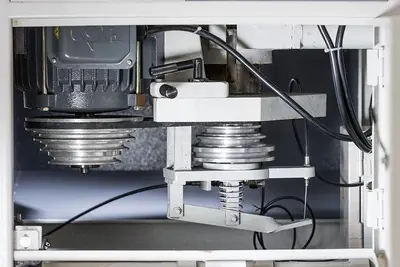

SPINDLE RPM: 3000, 4500, 6000, 9500 RPM

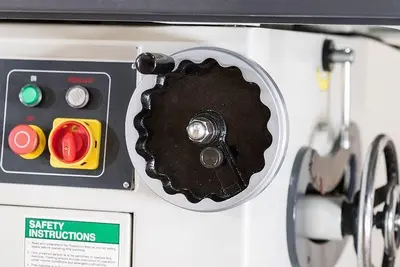

ELEVATION STYLE: Manual Wheel Adjustment
ELEVATION SYSTEM: Quill Housing / Jack Screw
APPROVED ELECTRICAL PARTS: CE Approved Parts
DUAL VOLTAGE MOTORS: 230/460 Volt
CONTROL VOLTAGE: 110 Volt
PASS-LINE: 35''
VERTICAL TRAVEL: 6'' On Spindle
DUST COLLECTION REQUIREMENT: 681 CFM @ Extraction Points
DUST PORT SIZE OUTLET: (1) 5''
EMERGENCY STOP: (1)
FENCE TYPE: Adjustable
FENCE DIMENSIONS: 6'' x 23-3/4''
MICRO FENCE: Knob Adjustment
ADJUSTABLE STROKE: 8-1/2'' on Spindle
TILT-ABLE: -5 - 45 Degrees
BRAKE SYSTEM: Brake Pedal / Brake Shoe
FRAME CONSTRUCTION: Steel
WORKTABLE DIMENSIONS: 36'' x 47-3/4
INFEED TABLE LENGTH: 20''
OUTFEED TABLE LENGTH: 20''
DECIBEL RATING: 73 dB
NET WEIGHT: 1870lbs.
GROSS WEIGHT: 1954 Lbs.
MACHINE DIMENSIONS: 88'' x 48'' x 50''
PACKAGING DIMENSIONS: 91'' x 55'' x 53''
