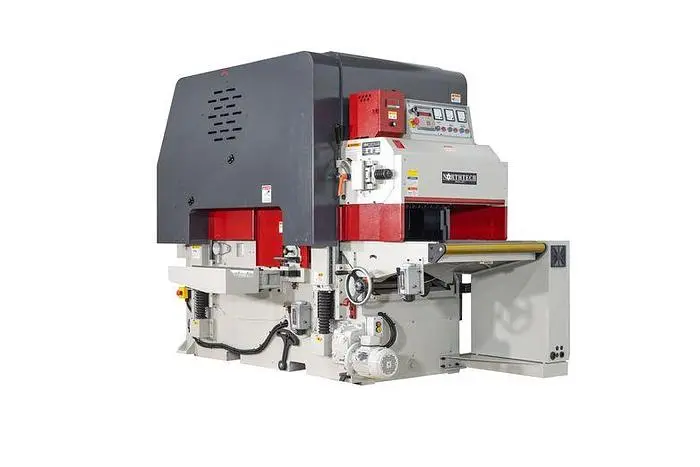

NEW NORTHTECH NT-760XL

The NT 760XL is our 30″ chain drive double surfacer with 8″ thickness capability. Double surfacers, some times referred to as 2 sided planers are used to size the thickness of wood and other dense materials such as plastic. The top and bottom helical cutter head uses two sided 30x12x2.5 carbide insert cutters for a moulder smooth finish, even with heavy stock removal. The powered top and bottom feed system is designed with integrated chrome bed rollers and a chain driven spring loaded carpet spike infeed. The jointer table infeed and overhead spring loaded carpet spike system allows this machine to not only size the thickness, but also straighten warped or crooked material. The top head is easily accessible for tooling changes by removing the dust hood and the bottom head pulls out of the machine completely in just a couple minutes for full access. The upper assembly is supported by a heavy duty slideway system that provides precision thickness sizing across the entire width and has digital thickness positioning control. Northtech Double surfacers are available in 16″-52″ working widths with up to a 24″ working thickness and can be offered with a safety/sound enclosure.

TOP HEAD HP: 40 HP
BOTTOM HEAD HP: 30 HP
VOLTAGE, FREQUENCY: 230/460 Volt 60HZ
PHASE: 3 Phase
AMP REQUIREMENT: 95 / 190 Amps
FEED HP: 5 Hp.
FEED SYSTEM: Carpet Feed / Powered Rollers

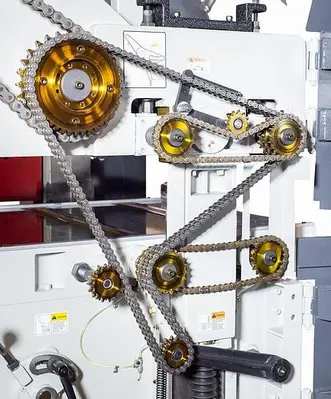

DRIVE SYSTEM: Chain Drive
FEED SPEED RANGE: 20-70 FPM

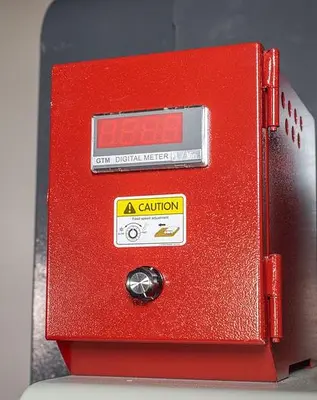

VARIABLE FEED SPEED: Inverter Controlled
ELEVATION HP: 1 HP
ELEVATION STYLE: GTM-525-A Digital Controller
ELEVATION SYSTEM: (4) Post Jack Screw
TOTAL MACHINE HP: 76 HP
APPROVED ELECTRICAL PARTS: CE Approved Components
DUAL VOLTAGE MOTORS: 230/460 Volt
CONTROL VOLTAGE: 110 Volt Control Voltage
PROGRAMABLE: Elevation
PASS-LINE: 32''
MIN. WORKING LENGTH: 12-1/2''
MAX. WORKING WIDTH: 29-15/15
MIN. WORKING THICKNESS: .396''
MAX. WORKING THICKNESS: 8.233''
CUTTER HEAD RPM: 5750 RPM
HEAD TYPE: Dynamically Balanced Helical Head
CUTTER HEAD DIMENSIONS: 5'' x 30''
CUTTER HEAD MATERIAL: Alloy Steel
ROWS OF CUTTERS: 6 Rows
NO. OF INSERTS: 114 Inserts Per Head
INSERT SIZE: 30 x 12 x 2.5 mm
NO. OF HEADS: (2) Heads
DUST COLLECTION REQUIREMENT: 1745 CFM @ Points of Extraction
DUST PORT SIZE OUTLET: (2) 8'' Ports

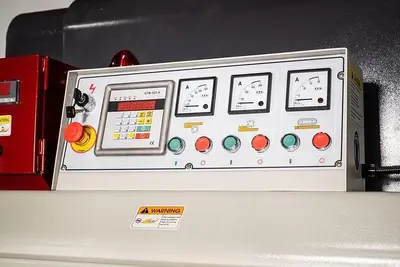

DIGITAL DISPLAY: Elevation / Feed Speed
POWERED ROLLERS: (2) Top (2) Bottom Powered Rollers
IDLE ROLLERS: (1) Top (1) Bottom Idle Rollers
HOLD DOWN STYLE: Chip Breakers/ Pressure Plate
CARPET SPIKE HARDNESS: HRC 45

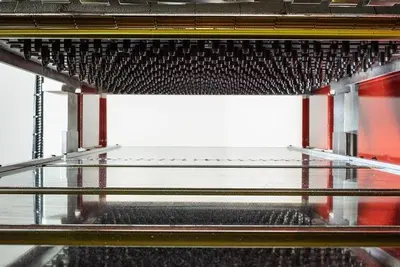

NO. OF SPIKES: 1350 Spikes
REAR E STOP: Push Button
GUARDING: High Visibility Guarding

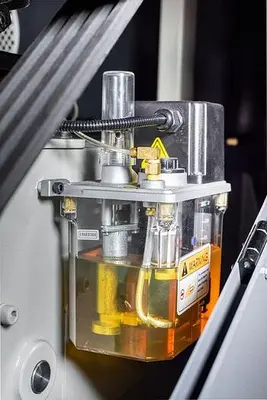

OILER: (1) Auto Oiler (1) Manual Oiler
LOW OIL WARNING/SHUT OFF: Oil Low Warning / Shut Off
DECIBEL RATING: 77 dB
NET WEIGHT: 7822 Lbs.
GROSS WEIGHT: 8352 Lbs.
MACHINE DIMENSIONS: 105'' x 59'' x 75''
PACKAGING DIMENSIONS: 110'' x 58'' x 71''
