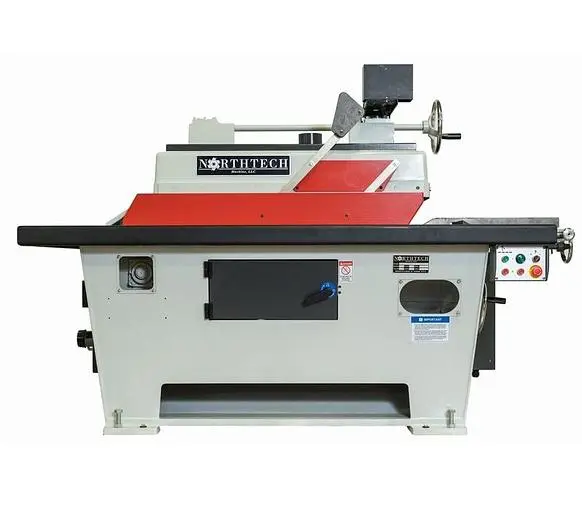

Northtech offers the strongest line of Straight Line Rip Saws. The NT-SLR18SC might be the runt of the bottom arbor saws, but has the premium engineered design of its big brothers. Premium safety features such as safety interlocks, anti-kickback fingers and rapid braking makes this machine one of the safest single blade rip saws available. The 20HP 18″ blade powers through over 5″ thick stock. Northtech Straight Line Rip Saws won the 2018 Visionary award for their touch activated fence. FEED SYSTEM
• Saw motor: 20HP, 3PH 230V
• Feed: 1.5HP variable from 50' - 190' / minute
PRODUCT DIMENSIONS
• Min. thickness: 3/16"
• Max depth of cut: 5" with 18'' Blade
• Max. width of stock: (Blade to column arms) 26"
FEATURES
• “True Track" Chain and Race
• Table size 83” x 40”
• Machine frame is constructed of a 1" thick base plate
• Solid steel frame with 1" thick column arms.
• Safety door switch with pneumatic motor brake.
• 2" arbor and large support bearings.
• Glue line guarantee on 8/4 stock is 12' at 60' / minute.
• All motors and electricals are UL rated.
• Industrial fence with cam lock quick release on rack and pinion glide.
• Two rows of heavy duty kickback fingers.
• (8) large pressure rollers for optimum glue line ripping.
• An automatic mechanical oiling system with low level alert.
• A 100mw laser light and mounting bracket are included.
• (1) Tool box
• Amperage requirements: 20HP + 1.5HP 230V / 460V: 54.3A / 27A.
• Dust requirements: (1) 4" dust port requiring 450 CFM (1) 6" dust port requiring 1,000 CFM
• Weight: 3455 lbs.
• Machine dimensions: (L) 90" x (W) 67" x (H) 68"
• Warranty is one year parts
• All machines are tested stateside prior to shipment providing trouble free start up. F.O.B. Borden, IN
SAW BLADE OPTIONS
• 14" x 70T carbide tipped blade (Item #NTSLR14SCSAWBLD)
• 16" x 70T carbide tipped blade (Item #NTSLR16SCSAWBLA)
• 18" x 70T carbide tipped blade (Item #NTSLR18SCSAWBLA)
Main Motor Hp.: 20 hp.
Voltage/ Freq.: 460 Volt 60Hz
Phase: 3 Phase
Amp Requirement: 27.15 Amps
Feed Hp.: 3 Hp.
Drive System: Belt
Feed Speed: 50 – 190 FPM
Variable Speed: Mechanical
Elevation Style: Manual Wheel Adjustment
Elevation System: Jack Screw Linear Guides
Total Hp.: 23 Hp.
Electronics: CE Approved Components
Dual Voltage: 230/460 Volt
Control Voltage: 110 Volt
Pass-Line: 32-3/4”
Throat Capacity: 26-1/4”
Min. Length: 16″ Kickback to First Roller
Min. Width: 1″
Min. Thickness: 3/16″
Max. Thickness: 5”
Glue Line Rip: 14′ – 16′ 4/4 stock @ 50 FPM
Arbor Rpm: 3550 Rpm
Blade Size: 14” Tungsten Carbide Tipped
No. of Teeth: 70 Tooth
Tooth Spacing: 5/8 In.
Blade Kerf: .197 In.
Tracking Style: “True Track” System
Dust Collection: 1417 Total CFM
Dust Port Out: 4” Top 6” Bottom
Chain Adj.: True Track Adjustable Chain
Hold Down Style: 8 Spring Loaded Hold Downs
Kickback Finger: (85) Bottom (40) Top
Emergency Stop: Push Button
Rear E Stop: Push Button
Safety Feature: Door Switch / Motor Brake
Guarding: High Visibility Guarding
Oiler: Automatic Mechanical Oiler
Low Oil Warning: Low Oil Shut-off
Fence Type: Industrial Cam Lock Quick Release
Fence Dims.: 1-3/4” x 27-3/4”
Brake System: Air Brake on Motor
Frame Construction: 1″ Base 1/2″ Cabinet 3/4″ Arms
Worktable Dimensions: 83″ x 40″ x 3.5″ Table
Table Const.: Steel
Laser: 100mw Laser Light & Mount Bracket
Decible Rating: 84 dB
Net Weight: 3455 Lbs.
Gross Weight: 3675 Lbs.
Machine Dimensions: 90″ x 67″ x 68″
Packaging Dimensions: 91” x 72” x 78”
