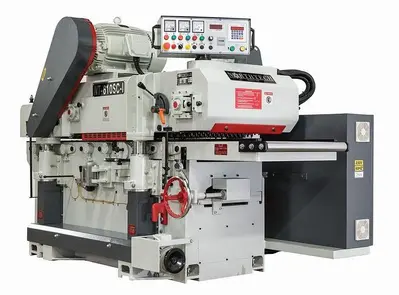

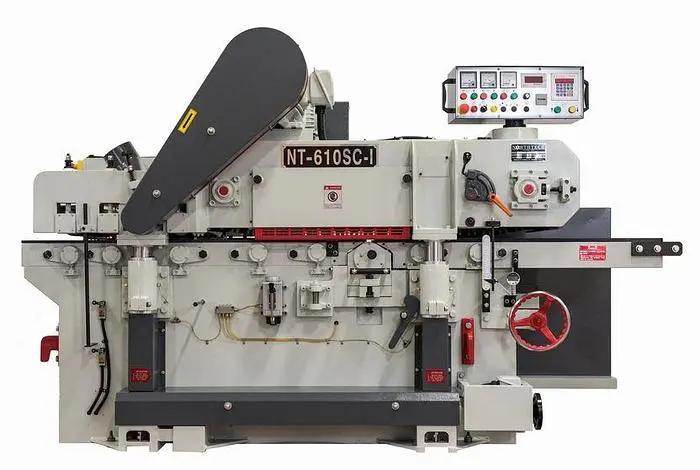

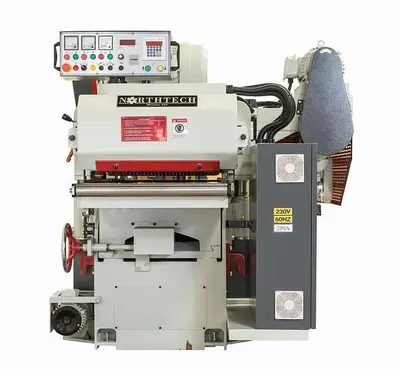

NEW NORTHTECH NT-610SC-I

The NT 610SC-I is our most popular double surfacer. Double surfacers, some times referred to as 2 sided planers are used to size the thickness of wood and other dense materials such as plastic. The NT 610SC-I has a 24″ working width and an 8″ working height, making it an extremely versatile machine. The top and bottom helical cutter head uses two sided 30x12x2.5 carbide insert cutters for a moulder smooth finish, even with heavy stock removal. The powered top and bottom feed system is designed with (7) rollers integrated in the chrome bed and a spring loaded carpet spike infeed with a gearbox connected carden shaft drive. The carden shaft drive delivers a slack free feed with out the common chain adjustments. The jointer table infeed and overhead spring loaded carpet spike system allows this machine to not only size the thickness, but also straighten warped or crooked material. The top head is easily accessible for tooling changes by removing the dust hood and the bottom head pulls out of the machine completely in just a couple minutes for full access. The upper assembly is supported by a (4) column slide system that provides precision thickness sizing across the entire width and has digital thickness positioning control. Northtech Double surfacers are available in 16″-52″ working widths with up to a 24″ working thickness and can be offered with a safety/sound enclosure. NT 610SC-I-40302 Double Surface Planer
Double Surfacer High Speed Series  40 + 30 + 7.5HP VFD

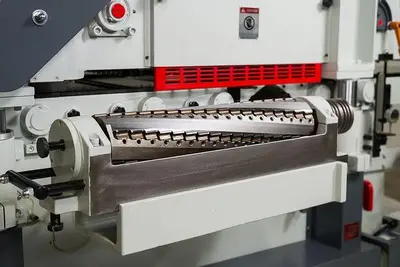

Dual (6) Row Helical Cutterhead with 30 x 12 x 2.5mm inserts
Patented 4 column lifting system •  Carpet feeding spike system

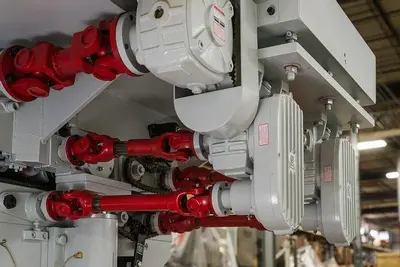

Cardan shaft drive system
100 FPM maximum feed speed •  Chrome bed plate
(2) 6” dust ports
Includes operator’s manual and parts book
One year parts warranty
All machines are tested stateside prior to shipment providing trouble-free start up.

TOP HEAD HP: 40 HP
BOTTOM HEAD HP: 30 HP
VOLTAGE, FREQUENCY: 230/460 Volt 60HZ
PHASE: 3 Phase
AMP REQUIREMENT: 109 / 218 Amps
FEED HP: 5 HP
FEED SYSTEM: Carpet Feed / Powered Rollers
DRIVE SYSTEM: Cardan Shaft Drive System
FEED SPEED RANGE: 30-90 FPM
VARIABLE FEED SPEED: Inverter Controlled
ELEVATION HP: 1 HP
ELEVATION STYLE: DP-626S Elevation Control
ELEVATION SYSTEM: (4) 3-1/4'' Geared Lifting Columns
TOTAL MACHINE HP: 76 HP
APPROVED ELECTRICAL PARTS: CE Approved Components
DUAL VOLTAGE MOTORS: 230/460 Volt
CONTROL VOLTAGE: 110 Volt
PROGRAMABLE: Elevation

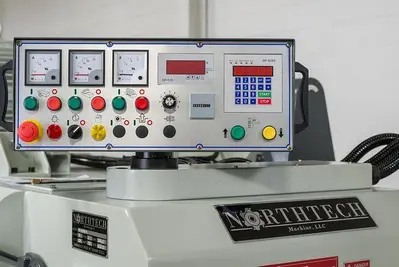

ADJUSTABLE OPERATOR PANEL: Adjustable Operator Panel
PASS-LINE: 33-5/8''
MAX. WORKING LENGTH: 14''
MAX. WORKING WIDTH: 24''
MIN. WORKING THICKNESS: .315''
MAX. WORKING THICKNESS: 7-3/4''
CUTTER HEAD RPM: 5100 Rpm
HEAD TYPE: Dynamically Balanced Helical Head
CUTTER HEAD DIMENSIONS: 5-1/2'' x 24''
CUTTER HEAD MATERIAL: Alloy Steel
ROWS OF CUTTERS: 6 Rows
NO. OF INSERTS: 105 Inserts Per Head
INSERT SIZE: 30 x 12 x 2.5 mm
NO. OF HEADS: (2) Heads
DUST COLLECTION REQUIREMENT: 980 CFM @ Point of Extraction
DUST PORT SIZE OUTLET: 6'' Top 6'' Bottom
DIGITAL DISPLAY: Elevation / Feed Speed
POWERED ROLLERS: (3) Top (3) Bottom Powered Roller
IDLE ROLLERS: (4) Idle Bed Rollers
HOLD DOWN STYLE: Chip Breakers/ Pressure Plate
CARPET SPIKE HARDNESS: HRC 45
NO. OF SPIKES: 1100 Spikes
REAR E STOP: Push Button
GUARDING: High Visibility Guarding
OILER: (1) Auto Oiler (1) Manual Oiler
LOW OIL WARNING/SHUT OFF: Oil Low Warning / Shut Off
FRAME CONSTRUCTION: Cast Construction
CHROME BED PLATE: .004'' Chrome Plated Bed
DECIBEL RATING: 80 dB
NET WEIGHT: 9259 Lbs.
GROSS WEIGHT: 9700 Lbs.
MACHINE DIMENSIONS: 110'' x 67'' x 73''
PACKAGING DIMENSIONS: 116'' x 76'' x 78''
