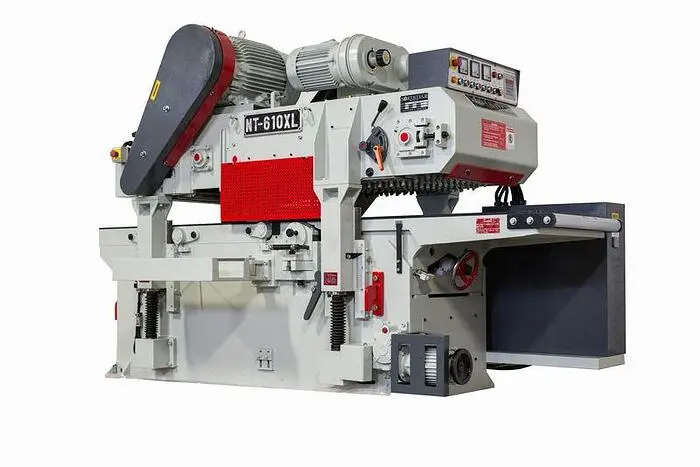

Northtech, NT-610XL Heavy Duty Chain Drive Series Double Surfacer

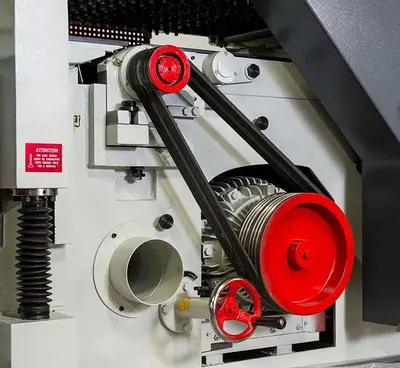

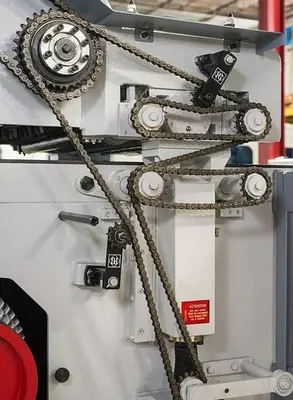

The NT 610XL is our most popular chain drive double surfacer. Double surfacers, some times referred to as 2 sided planers are used to size the thickness of wood and other dense materials such as plastic. The NT 610XL has a 24″ working width and over 6″ working height, making it a very capable machine. The top and bottom helical cutter head uses two sided 30x12x2.5 carbide insert cutters for a moulder smooth finish, even with heavy stock removal. The powered top and bottom feed system is designed with integrated chrome bed rollers and a chain driven spring loaded carpet spike infeed. The jointer table infeed and overhead spring loaded carpet spike system allows this machine to not only size the thickness, but also straighten warped or crooked material. The top head is easily accessible for tooling changes by removing the dust hood and the bottom head pulls out of the machine completely in just a couple minutes for full access. The upper assembly is supported by a heavy duty slideway system that provides precision thickness sizing across the entire width and has digital thickness positioning control. Northtech Double surfacers are available in 16″-52″ working widths with up to a 24″ working thickness. CUTTERHEADS
•  30HP Top, 25HP Bottom
•  Dual (6) Row Helical Cutterhead with double sided 30 x 12 x 2.5mm inserts
•  5000 RPM solid steel cutterheads with Class 7 NSK bearings
•  Cutterhead decibel rating of 75 dB or less
PRODUCT DIMENSIONS
•  Working thickness 10 - 155mm (3/8” - 6-1/2”)
•  15” min working length
•  24” maximum width
FEED SYSTEM
•  5HP feed motor
•  Carpet feeding spike system with 1100 spikes
•  Feed speed 25 - 95 ft/min
FEATURES
•  Mechanical variable speed

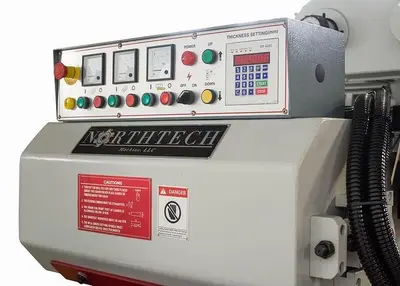

•  Digital control panel with 3 amp meters
•  Chrome bed plate  .01mm  (.004”) thick
•  Amperage requirement:  230V @ 200AMP, 460V @ 100AMP
•  (2) 6” dust ports requiring 1000 CFM @ each point of extraction
•   Automatic lubricating system with low level shut off
•  UL/CE Certified electrical components
•  Includes operator’s manual and parts book
•  Machine dimensions:  112” L x 46” W x 74” H
•  Packing dimensions:  117”L x 52”W x 78”H
•  Machine gross / net weight:  7,680 lbs. / 8,300 lbs
•  One year parts warranty
•  All machines are tested stateside prior to shipment providing trouble-free start up

TOP HEAD HP: 30 HP
BOTTOM HEAD HP: 25 HP
VOLTAGE, FREQUENCY: 230/460 Volt 60HZ
PHASE: 3 Phase
AMP REQUIREMENT: 100 / 200 Amps
FEED HP: 5 HP
FEED SYSTEM: Carpet Feed / Powered Rollers
DRIVE SYSTEM: Chain Drive
FEED SPEED RANGE: 25-95 FPM
VARIABLE FEED SPEED: Variable Speed Clutch With Knob Adjustment
ELEVATION HP: 1 HP
ELEVATION STYLE: DP-626S Elevation Control
ELEVATION SYSTEM: (4) Geared Lifting Columns
TOTAL MACHINE HP: 61 HP
APPROVED ELECTRICAL PARTS: CE Approved Components
DUAL VOLTAGE MOTORS: 230/460 Volt
CONTROL VOLTAGE: 110 Volt
PROGRAMABLE: Elevation
MIN. WORKING LENGTH: 15''
MAX. WORKING WIDTH: 24''
MIN. WORKING THICKNESS: .345''
MAX. WORKING THICKNESS: 6.5''
CUTTER HEAD RPM: 5000 RPM
HEAD TYPE: Dynamically Balanced Helical Head
CUTTER HEAD DIMENSIONS: 5-1/4'' x 24''
CUTTER HEAD MATERIAL: Alloy Steel
ROWS OF CUTTERS: 6 Rows
NO. OF INSERTS: 105 Per Head
INSERT SIZE: 30 x 12 x 2.5 mm
NO. OF HEADS: (2) Heads
DUST COLLECTION REQUIREMENT: 980 CFM @ Point of Extraction
DUST PORT SIZE OUTLET: (2) 6'' Ports
DIGITAL DISPLAY: Elevation
POWERED ROLLERS: (2) Top (2) Bottom Powered Roller
IDLE ROLLERS: (1) Idle Bed Roller
HOLD DOWN STYLE: Chip Breakers/ Pressure Plate
CARPET SPIKE HARDNESS: HRC 45
NO. OF SPIKES: 1100 Spikes
REAR E STOP: Push Button
GUARDING: High Visibility Guarding
OILER: (1) Auto Oiler (1) Manual Oiler
LOW OIL WARNING/SHUT OFF: Oil Low Warning / Shut Off
FRAME CONSTRUCTION: Cast Construction
CHROME BED PLATE: .004'' Chrome Plated Bed
DECIBEL RATING: 80 dB
NET WEIGHT: 7680 Lbs.
GROSS WEIGHT: 8300 Lbs.
MACHINE DIMENSIONS: 112'' x 46'' x 74''
PACKAGING DIMENSIONS: 116'' x 51'' x 78''
