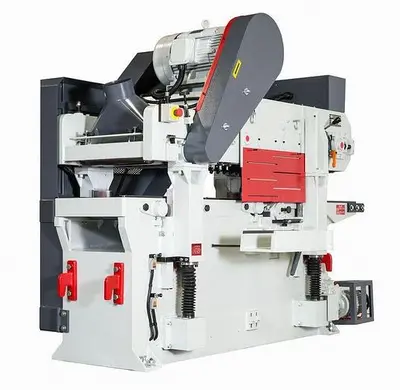

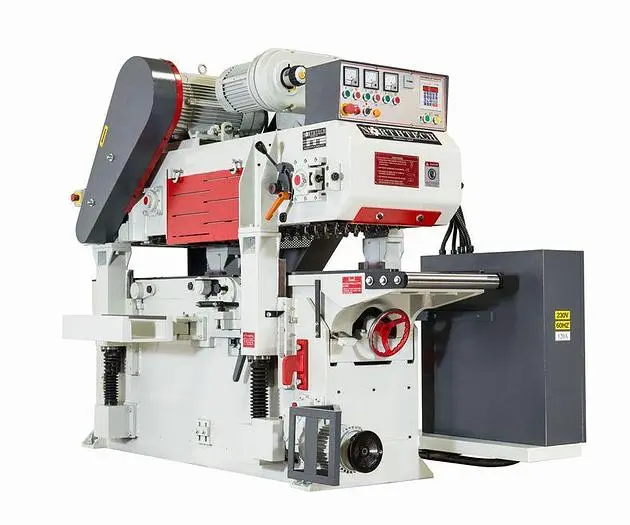

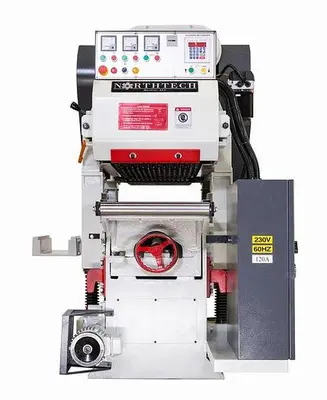

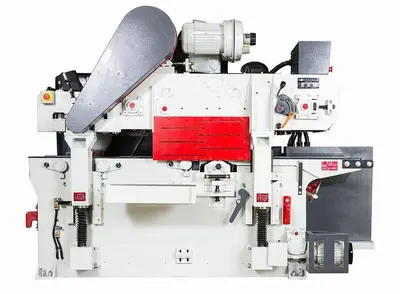

Northtech NT 400XL Heavy Duty Chain Drive Series Double Surfacer

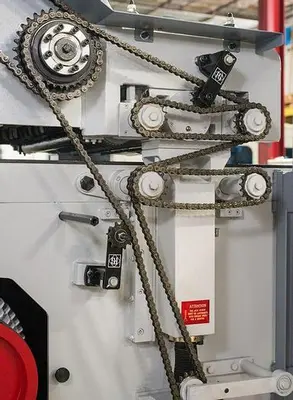

The NT 400XL is our 16″ chain drive double surfacer. Double surfacers, some times referred to as 2 sided planers are used to size the thickness of wood and other dense materials such as plastic. The NT 400XL has a 16″ working width and over 6″ working height, making it a very capable machine. The top and bottom helical cutter head uses two sided 30x12x2.5 carbide insert cutters for a smooth finish across the entire width. The powered top and bottom feed system is designed with integrated chrome bed rollers and a chain driven spring loaded carpet spike infeed. The jointer table infeed and overhead spring loaded carpet spike system allows this machine to not only size the thickness, but also straighten warped or crooked material. The top head is easily accessible for tooling changes by removing the dust hood and the bottom head pulls out of the machine completely in just a couple minutes for full access. The upper assembly is supported by a heavy duty slideway system that provides precision thickness sizing across the entire width and has digital thickness positioning control. Northtech Double surfacers are available in 16″-52″ working widths with up to a 24″ working thickness and can be offered with a safety/sound enclosure. CUTTERHEADS
20HP Top, 15HP Bottom
Dual (6) Row Helical Cutterhead with double sided 30 x 12 x 2.5mm
inserts
5100RPM solid steel cutterheads with Class 7 NSK bearings
PRODUCT DIMENSIONS
Working thickness 10 - 155mm (3/8” - 6-1/2”)
13” min working length
400mm (16”) maximum width
FEED SYSTEM
2HP feed motor
Carpet feeding spike system with 644 spikes
Feed speed 25-85 FPM
FEATURES
1HP elevation motor
Mechanical variable speed

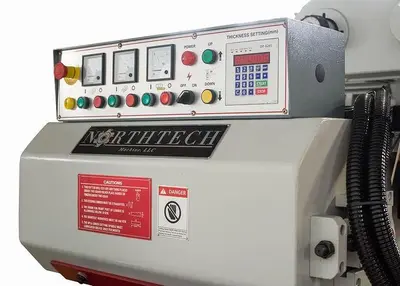

Digital control panel with 3 amp meters
Chrome bed plate .004’’ thick
Amperage requirement: 230V/110 AMPS, 460V/55 AMPS
(2) 6” dust ports requiring 981 CFM @ each point of extraction
Lubricating system included
UL/CE Certified electrical components
Includes operator’s manual and parts book
Net weight: 5,820 lbs.
Gross weight: 6,000 lbs.
Machine dimensions: L99” x W36” x H70”
Packaging dimensions: L99” x W46” x H77”
One year parts warranty
All machines are tested at our corporate headquarters in Indiana prior to shipment providing trouble free start up.
