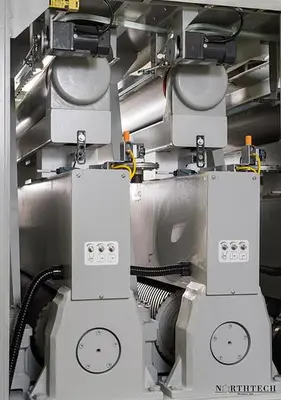

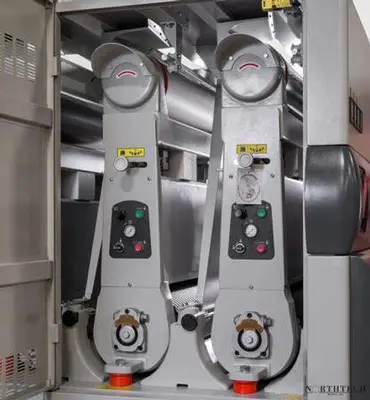

NEW NORTHTECH NT-10-1300RC

While Northtech Wide Belt Sanders have been trusted for decades in wood shops of all sizes, 10 series machines are designed for industrial production use. The NT-10-1300RC is a two head wide belt sander with a over 50″ of working width that is designed for multishift operations with added safety features and a massive fabricated steel frame. The configuration of 10″ Roller-Combination allows for aggressive stock removal and a smooth stain ready finish in one pass. Available in a bottom series and planer series with 85″ or 103″ belts, brush cleaner, and programable oscillating belt cleaners.

MACHINE HP: 59 HP
VOLTAGE, FREQUENCY: 230/460 Volt 60Hz
PHASE: 3 Phase
AMP REQUIREMENT: 149/74.5 HP
CONFIGURATION: Roller Combination
1st HEAD: 30 HP Rubber Fluted Drum
2nd HEAD: 25 HP 6'' Drum Combination Head
FEED HP: 3 HP
FEED SYSTEM: 52-3/4'' Rubber Feed Mat
DRIVE SYSTEM:: 3 HP Motor to Feed Mat
FEED SPEED RANGE: 15-60 FPM
VARIABLE FEED SPEED: Inverter Controlled
ELEVATION HP: 1 HP
ELEVATION STYLE: Digital Touch Screen
ELEVATION SYSTEM: (4) Post Jack Screw
TOTAL MACHINE HP: 59 HP
APPROVED ELECTRICAL PARTS: CE Approved Parts
DUAL VOLTAGE MOTORS: 230/460 Volt
CONTROL VOLTAGE: 220 Volt
PROGRAMABLE: Elevation / Feed Speed
TOUCH SCREEN: 7'' Touch Screen
PASS-LINE: 30-3/8'' - 36''
MIN. WORKING LENGTH: 19''
MAX. WORKING WIDTH: 53''
MIN. WORKING THICKNESS: .169''
MAX. WORKING THICKNESS: 5.906''
NO. OF HEADS: 2 Heads
SANDPAPER SIZE: 53-1/4'' x 85''
PLATEN SPECIFICATIONS: 3-1/2'' x 53-1/4''
1st BELT SPEED: 4900 FPM
2nd BELT SPEED: 2950 FPM
OSCILLATION STYLE: Photo Eye
OSCILLATION RATE: Adjustable
OSCILLATION TRAVEL: 3/8''
CLEANING SYSTEM: Jet Blow Off Photo Eye (2) Paper jet Blow Of
TRACKING STYLE: Photo Eye Pneumatic Cylinder
TENSION STYLE: Pneumatic Cylinder
DUST COLLECTION REQUIREMENT: 681 CFM @ Extraction Points
DUST PORT SIZE OUTLET: (8) 5'' Ports
IDLE ROLLERS: (4) Top Idle Rollers
PRESSURE SHOES: (2) Top Pressure Shoes
HOLD DOWN STYLE: Idle Rollers / Pressure Shoes
FLR INCLUDED: Filter, Lubricator, Regulator
CFM AIR SUPPLY REQUIREMENT: (2) 3/8'' Line @ 90 PSI
EMERGENCY STOP: (1) Front
REAR E STOP: (1) Rear
GUARDING: Full Enclosure
OPERATION STYLE: Automatic

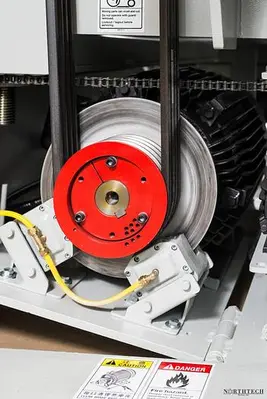

BRAKE SYSTEM: Dual Pneumatic Caliper Brakes
FRAME CONSTRUCTION: Steel Construction
TABLE CONSTRUCTION MATERIAL: Steel
MEASURING METHOD: Encoder
DECIBEL RATING: 76 dB
NET WEIGHT: 9068 Lbs.
GROSS WEIGHT: 8643 Lbs.
MACHINE DIMENSIONS: 83'' x 83'' x 83''
PACKAGING DIMENSIONS: 91'' x 92'' x 84''
