NEW NORTHTECH NT 12-1100RC

While Northtech Wide Belt Sanders have been trusted for decades in wood shops of all sizes, the 12 series machines are designed for industrial production use. The NT-12-1100RC is a two head wide belt sander with 43″ of working width that is designed for multishift operations with added safety features and a massive fabricated steel frame. The contact drum and combination head configuration provides excellent stock removal with a smooth finish. Available in a bottom series with 85″ or 103″ belts, brush cleaner, and programable oscillating belt cleaners.

VOLTAGE, FREQUENCY: 230/460 Volt 60 Hz
PHASE: 3 Phase
AMP REQUIREMENT: 72 / 144 Amps
CONFIGURATION: Roller Combination
1st HEAD: 30 HP 12'' Spiral Fluted 70 Durometer
2nd HEAD: 25 HP 6'' Roller Combination 65 Durometer
BRUSH MOTOR HP: 1 HP
FEED HP: 3 HP

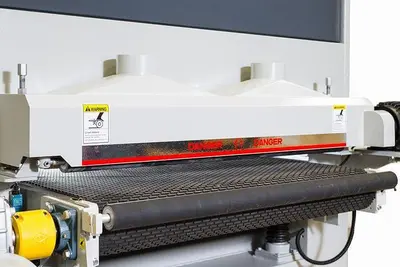

FEED SYSTEM: 43'' Rubber Feed Mat
DRIVE SYSTEM: Motor Gear Box
FEED SPEED RANGE: 20 - 90 FPM
VARIABLE FEED SPEED: Inverter Controlled
ELEVATION HP: 3 HP
ELEVATION STYLE: Digital Touch Screen
ELEVATION SYSTEM: (4) Post Jack Screw
TOTAL MACHINE HP: 60 HP
APPROVED ELECTRICAL PARTS: CE Approved Components
DUAL VOLTAGE MOTORS: 230/460 Volt
CONTROL VOLTAGE: 220 Volt
TOUCH SCREEN: 7'' Touch Screen
MIN. WORKING LENGTH: 20''
MAX. WORKING WIDTH: 43''
MIN. WORKING THICKNESS: .196''
MAX. WORKING THICKNESS: 4.718''
SANDPAPER SIZE: 43'' x 103''
PLATEN SPECIFICATIONS: 4'' x 44'' Platen
1st BELT SPEED: 4850 FPM
2nd BELT SPEED: 2960 FPM

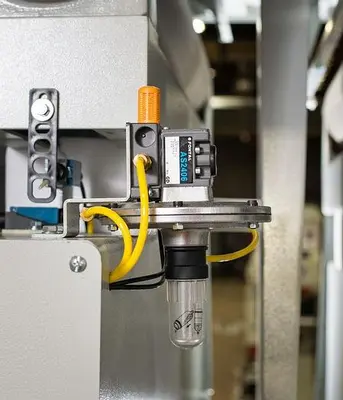

OSCILLATION STYLE: Photo Eye
OSCILLATION RATE: (20) Cycles Per Minute Adjustable
OSCILLATION TRAVEL: 1/2''
CLEANING SYSTEM: Oscillating Jet Blow Off
TRACKING STYLE: Pneumatic Cylinder
TENSION STYLE: Pneumatic Cylinder
DUST COLLECTION REQUIREMENT: 681 CFM @ Points of Extraction
DUST PORT SIZE OUTLET: (10) 5''
IDLE ROLLERS: (8) Idle Rollers
PRESSURE SHOES: (3) Pressure Shoes
HOLD DOWN STYLE: Rollers / Shoes
FLR INCLUDED: Filter, Regulator, Lubricator
CFM AIR SUPPLY REQUIREMENT: 3/8'' Line @ 90 PSI
EMERGENCY STOP: (2)
GUARDING: Full Enclosure

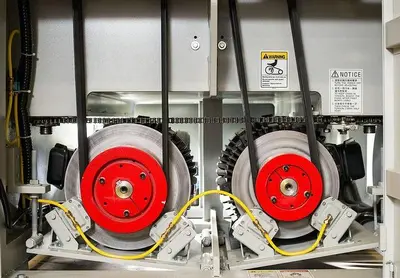

BRAKE SYSTEM: Dual Caliper Pneumatic Brakes
FRAME CONSTRUCTION: Steel / Cast
TABLE CONSTRUCTION MATERIAL: Steel
MEASURING METHOD: Encoder
DECIBEL RATING: 77 dB
NET WEIGHT: 7716 Lbs.
GROSS WEIGHT: 8378 Lbs.
MACHINE DIMENSIONS: 88'' x 74'' x 92''
PACKAGING DIMENSIONS: 95'' x 79'' x 93
