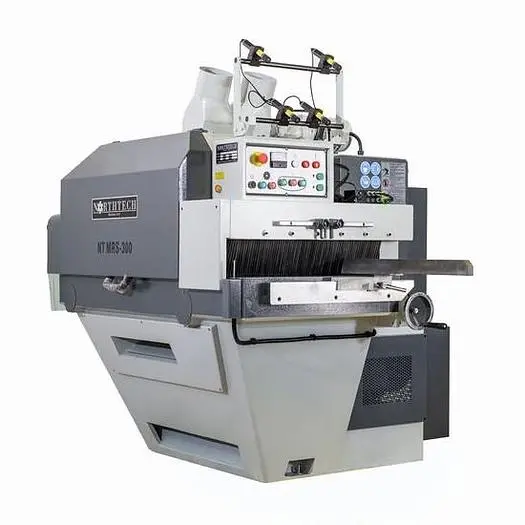

The NT MRS300 Multiple Rip Saw features a cast iron frame that houses a variable speed dip chain for premium rip capability. Sometimes referred to as gang rip saws, this machine has easy maintenance and change overs with a high rise arbor access hood. The stable base paired with first class safety features provides industrial level ripping for softwood and hardwood lumber. NT MRS300-5032 Gang Rip Saw
• Saw arbor motor: 50 HP
• Feed motor: 2 HP (3HP on request)
• Max. cutting thickness: 5''
• Max. cutting thickness (w/short stock device): 95 mm (3.74") (optional)
• Max. cutting width: 300 mm (12")
• Distance from column to link chain center: 29-1/2''
• Min. working length: 500 mm (19.685")
• Min. working length (w/short stock device): 300 mm (11.811") (optional)
• Max. sawblade diameter: 12''
• Min. sawblade diameter" 10''
• Sawblade bore: 70 mm
• Saw arbor diameter: 50 mm
• Saw arbor speed: 3775 RPM
• Variable feed speed: 25-100 FPM
• Hold down roller elevating motor: 0.5 HP
• Table area (LxW): 60"x30"
• Machine dimensions (LxWxH): 81' x 61'' x 70''
• Packing dimensions (LxWxH): 65'' x 68'' x 65''
• Net weight: 4,525 lbs.
• Gross Weight: 4725 Lbs.
• Warranty is one year parts
• All machines are tested stateside prior to shipment providing trouble free start up.
MAIN MOTOR HP: 50 HP
VOLTAGE, FREQUENCY: 230/460 Volt 60
PHASE: 3 Phase
AMP REQUIREMENT: 34/68 Amps
FEED HP: 2/1 Hp. 2 Speed
FEED SYSTEM: 12'' Dip Chain
FEED SPEED RANGE: 25 - 100 FPM
VARIABLE FEED SPEED: Manual Wheel Adjustment
ELEVATION HP: 1/2 HP
ELEVATION STYLE: Push Button
TOTAL MACHINE HP: 52.5 HP
APPROVED ELECTRICAL PARTS: CE Approved Components
DUAL VOLTAGE MOTORS: 230/460 Volt
CONTROL VOLTAGE: 110 Volt
ASSISTED START: Wye Delta
MAX. WORKING WIDTH: 29-1/2''
ARBOR RPM: 3775 RPM
BLADE SIZE: 12'' Tungsten Carbide Tipped
TOOTH SPACING: 1-1/8''
BLADE KERF: .160''
DUST PORT SIZE OUTLET: (2) 6'' Ports
ARBOR DIAMETER: 50 MM
REAR E STOP: Push Button
SAFETY FEATURE: Sawblade Door Safety Interlock
GUARDING: Full Cabinet Enclosure
OILER: Auto Oiler
FENCE TYPE: Adjustable
FENCE DIMENSIONS: 2-1/4'' x 27-1/2''
FRAME CONSTRUCTION: 3/4'' Steel Construction
WORKTABLE DIMENSIONS: 30'' x 60''
TABLE CONSTRUCTION MATERIAL: Cast Iron
DECIBEL RATING: 75 dB
NET WEIGHT: 4525 Lbs.
GROSS WEIGHT: 4725 Lbs.
