New | in-Stock NORTHTECH NT-750 Pin Routers | Martin's Woodworking Machinery #918204
New | in-Stock

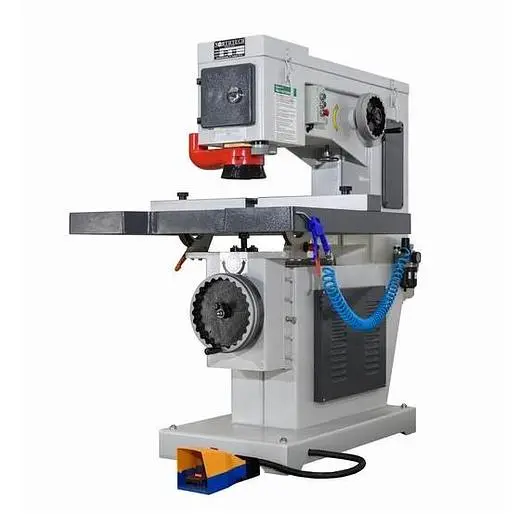

NEW NORTHTECH NT-750

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Martin's Woodworking Machinery
725Listings|5Followers
View seller profile
Overview
Pin Routers
NORTHTECHNT-750

Northtech Overarm Pin Routers are designed with a heavy cast iron body and steel base to eliminate chatter flex. The NT-750 Overarm Pin Router has a 10HP (2) speed spindle with over 29″ of throat clearance. This paired with the heavy duty tilting steel table and multi position drill setting provide quick and versatile change overs.

Specs

MACHINE HP: 10 HP
VOLTAGE, FREQUENCY: 230/460 Volt 60HZ
PHASE: 3 Phase
AMP REQUIREMENT: 14 / 28 Amps
CONFIGURATION: 1/4'' 3/8'' 1/2'' Collet
SPINDLE RPM: 8100 / 16300 RPM (2) Speed
ELEVATION STYLE: Manual Wheel Adjustment
ELEVATION SYSTEM: Jack Screw / Linear Guides
APPROVED ELECTRICAL PARTS: CE Approved Components
CONTROL VOLTAGE: 230 Volt
THROAT CAPACITY: 29-1/2''
MIN. WORKING THICKNESS: 1-1/2'' Collet to Table
MAX. WORKING THICKNESS: 7-1/2'' Collet to Table
VERTICAL TRAVEL: 7-1/2''
DUST COLLECTION REQUIREMENT: 245 CFM @ Point of Extraction
DUST PORT SIZE OUTLET: (1) 3'' Port
FLR INCLUDED: Filter, Lubricator, Regulator
CFM AIR SUPPLY REQUIREMENT: 1/4'' Line @ 90 PSI
EMERGENCY STOP: Push Button
GUARDING: High Visibility Guarding
OPERATION STYLE: Pneumatic Foot Pedal
FENCE TYPE: Adjustable Fence
FENCE DIMENSIONS: 2-1/2'' x 40''
ADJUSTABLE STROKE: 3 Adjustable Settings
TILT-ABLE: 45 Degrees
FRAME CONSTRUCTION: Cast Construction
WORKTABLE DIMENSIONS: 39-3/4'' x 35-1/2''
TABLE CONSTRUCTION MATERIAL: Cast
DECIBEL RATING: 73 Db
NET WEIGHT: 1462 Lbs.
GROSS WEIGHT: 1647 lbs.
MACHINE DIMENSIONS: 40'' x 62'' x 64''
PACKAGING DIMENSIONS: 44'' x 66'' x 71''
