Northtech Overarm Pin Routers are designed with a heavy cast iron body and steel base to eliminate chatter flex. The NT-555 Overarm Pin Router has a 5HP (2) speed spindle with 22″ of throat clearance. This paired with the heavy duty tilting steel table and multi position drill setting provide quick and versatile change overs.
MACHINE HP: 5 HP
VOLTAGE, FREQUENCY: 230/460 Volt 60HZ
PHASE: 3 Phase
AMP REQUIREMENT: 7.5 / 15 Amps
CONFIGURATION: 1/4'' 3/8'' 1/2'' Collet
SPINDLE RPM: 8900 / 17800 RPM

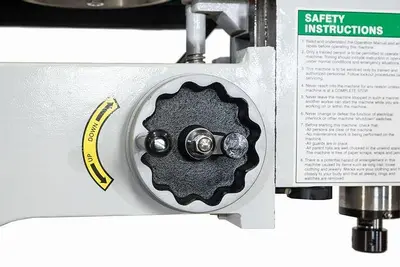

ELEVATION STYLE: Manual Wheel Adjustment
ELEVATION SYSTEM: Jack Screw / Linear Guides
APPROVED ELECTRICAL PARTS: CE Approved Components
CONTROL VOLTAGE: 230 Volt
MIN. WORKING THICKNESS: 2-3/4'' Collet to Table
MAX. WORKING THICKNESS: 8-1/2'' Collet to Table
VERTICAL TRAVEL: 5-3/4''
FLR INCLUDED: Filter, Lubricator, Regulator
CFM AIR SUPPLY REQUIREMENT: 1/4'' Line @ 90 PSI
EMERGENCY STOP: Push Button
OPERATION STYLE: Pneumatic Foot Pedal
FENCE TYPE: Adjustable Fence
FENCE DIMENSIONS: 2-1/4'' x 24''
ADJUSTABLE STROKE: 3 Adjustable Settings
TILT-ABLE: 45 Degrees
FRAME CONSTRUCTION: Cast Construction
WORKTABLE DIMENSIONS: 18'' x 24''
TABLE CONSTRUCTION MATERIAL: Cast
DECIBEL RATING: 70 dB
NET WEIGHT: 660 Lbs.
GROSS WEIGHT: 745 Lbs.
MACHINE DIMENSIONS: 38'' x 24'' x 74''
PACKAGING DIMENSIONS: 38'' x 24'' x 74''
