Northtech offers a large family of industrial grade edge sanders. The NT-ES1260D falls into the middle of the family of edge sanders with a 12″x60″ sanding area on both sides of the machine along with an end table for smaller and contoured sanding work. Edge Sanders with double side tables can have a centrally located control station that allows for machine start/stop from both sides. Chrome side tables are tiltable to 45 degrees and are on a gear driven elevation system making it easy to take advantage of full use of the sanding belts on smaller parts. The electronic oscillation and heavy duty cast iron frame provides a vibration free base and heavy stock removal capability. • 10HP main motor; 3PH, 230V/460V Dual Voltage • 12mm (1/2") oscillating stroke • Drive wheel: 7" x 12" • Easy elevation control through manual worm gear • Side table dimensions: 10-3/8" x 60-11/16" • Side table tilt 0° - 45° • End table dimensions: 13-3/4" x 16-1/2" • End table tilt: 0° - 45° • Sanding belt size: 12" x 165" (Included) • Sanding belt speed: 60HZ, 3200 FPM • Platen size: (2) 13" x 60" • Dust ports: (2) 4" • Easy jig fences are standard for squaring accuracy and part stability • Machine Dimensions: 83" x 29" x 49" • Packaging Dimensions: 87" x 34" x 56" • Net weight: 1,100 lbs • Gross weight: 1,340 lbs • (1) Tool box • Warranty is one year parts
DIRECT DRIVE: Motor to 7” x 13” Pulley

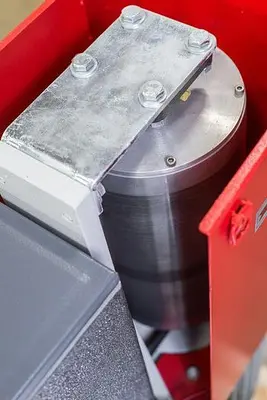

DRUM SPECS: 7”x 13” Steel 7”x 12.5” Rubber
MACHINE HP.: 10 hp.
VOLTAGE / FREQ.: 230/460 Volt 60Hz
PHASE: 3 Phase
AMP REQUIRMENT: 30 Amps
ELECTRONICS: CE Approved Components
DUAL VOLTAGE: 230/460 Volt
CONTROL VOLTAGE: 24 Volt Control Voltage
SANDPAPER SIZE: 12” x 165”
PLATEN SPECS.: 13” x 60”
ROLLER TYPE: Steel / Rubber
OSCILLATION STY: Gear Box Driven
OSCILLATION TRAVEL: 1/2”
TRACKING STYLE: Manual Adjustment
TENSION STYLE: Manual Adjustment
DUST COLLECTION: 872 CFM @ Extraction Point
DUST PORT SIZE OUTLET: 2 4” Top
RECOMMENDED CFM: 480 nl/min
EMERGENCY STOP: Push Button
GUARDING: High Visibility Guarding
TILTABLE: 45 Degrees
WORKTABLE DIMENSIONS: 10-1/2” x 59-1/2”
SIDE TABLE DIMENSIONS: 10-3/8” x 60-11/16”
TABLE CONSTRUCTION MATERIAL: Steel
DECIBEL RATING: 79 dB
NET WEIGHT: 1100 Lbs.
GROSS WEIGHT: 1340 Lbs.
MACHINE DIMENSIONS: 83” x 29” x 49”
PACKAGING DIMENSIONS: 87” x 34” x 56”
