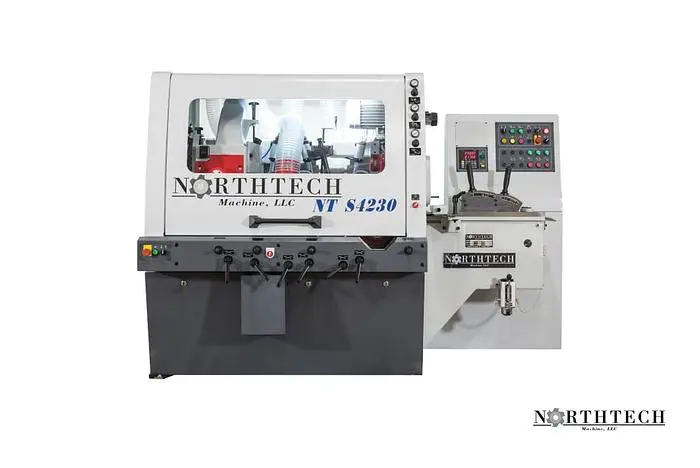

NEW NORTHTECH NT-S4230-1
Overview
NT-S4230-1 MOULDER 4 HEAD The NT S4230-1 is a compact heavy duty 4 head moulder with large moulder capacity and a digitally positioned outside spindle for fast width changes. The 5″ x 9″ capacity moulder with single head per side configuration provides simple profile and excellent S4S capability while maintaining a compact footprint. Features such as chrome table, Siko mechanical readouts, bed oiler, and 40mm 6000RPM spindles are standard. Many upgradeable options for operator convenience makes the S series is an excellent option when space matters.
Specs
MACHINE HP: 33.3 HP
REVERSIBLE MOTOR: Reversible Feed
VOLTAGE, FREQUENCY: 230/460 Volt 60HZ
PHASE: 3 Phase
AMP REQUIREMENT: 91.6/45.8 Amps
CONFIGURATION: B-R-L-T
1ST SPINDLE: Bottom 7.5 HP 6000RPM
2nd SPINDLE: Right Shared 15 HP 6000 RPM
3rd SPINDLE: Left Shared 15 HP 6000 RPM
4th SPINDLE: Top 7.5 HP. 6000 RPM
SPINDLE DIAMETER: 40 MM
SPINDLE RPM: 6000 RPM
UNDER THE NUT CAPACITY: 10-1/4'' Horizontal, 6'' Vertical
FEED HP: 3 HP
FEED SYSTEM: Knurled and Urethane Rollers
DRIVE SYSTEM: Carden Shaft
FEED SPEED RANGE: 20-75 FPM
VARIABLE FEED SPEED: Manual Knob Adjustment
REVERSIBLE FEED: Reversible
ELEVATION HP: 1/3 HP.
ELEVATION STYLE: Manual Knob Control
ELEVATION SYSTEM: Linear Guide Jacks Screws
TOTAL MACHINE HP: 38.3 HP
APPROVED ELECTRICAL PARTS: CE Approved Parts
DUAL VOLTAGE MOTORS: 230/460 Volt
CONTROL VOLTAGE: 110 Volt
ASSISTED START: 15 HP Motor Shared by Head 2/3
PROGRAMABLE: 3rd Vertical Head
PASS-LINE: 34-3/4''
CUTTING ENVELOPE: 9'' Wide x 5-1/4'' Tall
MIN. WORKING LENGTH: 22''
MAX. WORKING WIDTH: 9''
MIN. WORKING THICKNESS: 3/8''
MAX. WORKING THICKNESS: 5-1/4''
DUST COLLECTION REQUIREMENT: 681 CFM @ Extraction Points
DUST PORT SIZE OUTLET: (4) 5'' Ports
DIGITAL DISPLAY: Digital Readout 3rd Head
POWERED ROLLERS: (5) Top (1) Bottom
PRESSURE SHOES: (2) Pressure Shoes
HOLD DOWN STYLE: (5) Pneumatic (1) Spring Loaded Hold Down
FLR INCLUDED: Filter, Lubricator, Regulator
CFM AIR SUPPLY REQUIREMENT: 3/8'' Line @ 90 PSI
EMERGENCY STOP: Push Button
REAR E STOP: Push Button
GUARDING: Full Enclosure
OPERATION STYLE: Auto / Manual
GREASE MANIFOLD: (4) Grease Fittings for Spindles
OILER: (1) Manual Oiler
FENCE TYPE: Adjustable
FENCE DIMENSIONS: 1'' x 40-1/2''
FRAME CONSTRUCTION: Cast/Steel
TABLE CONSTRUCTION MATERIAL: Chromed Cast Steel
CHROME BED PLATE: Yes
NOISE REDUCTION BED PLATE FINGERS: 1st Head
DECIBEL RATING: 70 dB
NET WEIGHT: 4750 Lbs.
GROSS WEIGHT: 5150 Lbs.
MACHINE DIMENSIONS: 92'' x 56'' x 67''
PACKAGING DIMENSIONS: 94'' x 61'' x 76''
