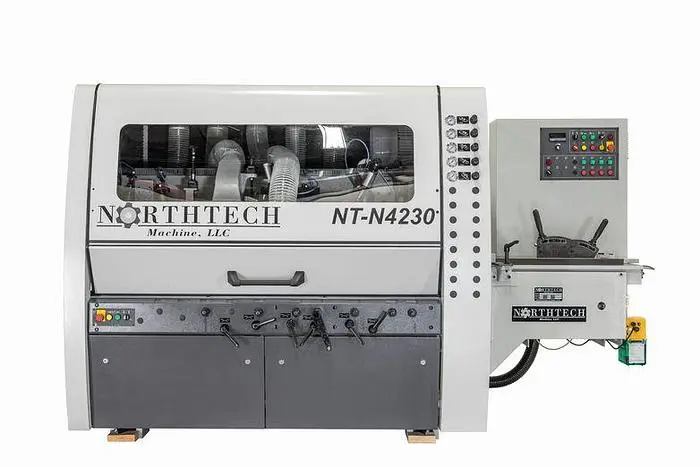

NEW NORTHTECH NT-N4230

NT-N4230 MOULDER 4 HEAD The NT N4230 is our standard 4-head N series machine. The 6″ x 9″ capacity moulder with a standard 4-head configuration provides excellent S4S and simple profiled mouldings. Features such as a chrome table, Siko mechanical readouts, automatic bed oiler and independent motors powering 1-13/16″ 6000RPM spindles are standard. There are a vast amount of optional features available making the N series an excellent option to higher priced competitive models.

MACHINE HP: 43 HP
VOLTAGE, FREQUENCY: 230/460 Volt 60HZ
PHASE: 3 Phase
AMP REQUIREMENT: 228/114 Amps
CONFIGURATION: B-R-L-T
1ST SPINDLE: Bottom Horizontal 10HP 6,000RPM
2nd SPINDLE: Right Vertical 10HP 6,000RPM
3rd SPINDLE: Left Vertical 10HP 6,000RPM
4th SPINDLE: Top Horizontal 15HP 6,000RPM
SPINDLE DIAMETER: 1-13/16''
SPINDLE RPM: 6000 RPM
UNDER THE NUT CAPACITY: Horizontal 10'' Vertical 7"
FEED HP: 7.5 HP
FEED SYSTEM: Knurled and Urethane Rollers
DRIVE SYSTEM: Carden Shaft
FEED SPEED RANGE: 20-130 FPM
VARIABLE FEED SPEED: Inverter Controlled
REVERSIBLE FEED: Reversible
ELEVATION HP: 1/2 HP
ELEVATION STYLE: Manual Knob Control
ELEVATION SYSTEM: Linear Guide Jacks Screws
APPROVED ELECTRICAL PARTS: CE Approved Parts
DUAL VOLTAGE MOTORS: 230/460 Volt
CONTROL VOLTAGE: 110 Volt
ASSISTED START: Wye Delta 4th Head
PASS-LINE: 35''
CUTTING ENVELOPE: 6-3/8'' x 10''
MIN. WORKING LENGTH: 27''
MAX. WORKING WIDTH: 10''
MIN. WORKING THICKNESS: 3/8''
MAX. WORKING THICKNESS: 6-3/8''
TOOLING: Straight Knife Heads
ROWS OF CUTTERS: (4) Knives
DUST COLLECTION REQUIREMENT: 681 CFM @ Extraction Points
DUST PORT SIZE OUTLET: (5) 5''
DIGITAL DISPLAY: Feed Speed

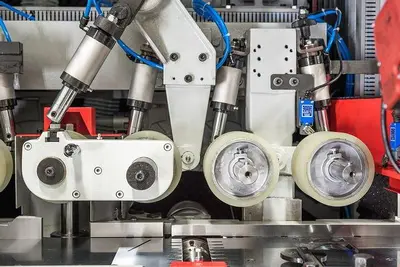

POWERED ROLLERS: (3) Bottom (8) Top
IDLE ROLLERS: (2)
PRESSURE SHOES: (2) Pressure Shoes

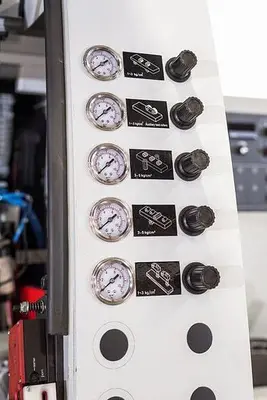

HOLD DOWN STYLE: Pneumatic Hold Downs / Pressure Shoes
FLR INCLUDED: Filter, Lubricator, Regulator
CFM AIR SUPPLY REQUIREMENT: 3/8'' Line @ 90 PSI
EMERGENCY STOP: Push Button
REAR E STOP: Push Button
GUARDING: Full Enclosure
OPERATION STYLE: Auto / Manual
GREASE MANIFOLD: Yes
OILER: Bed Oiler
FENCE TYPE: Adjustable
FENCE DIMENSIONS: 1'' x 60''
FRAME CONSTRUCTION: Cast / Steel
WORKTABLE DIMENSIONS: 10-3/4'' x 117''
TABLE CONSTRUCTION MATERIAL: Chromed Cast Steel

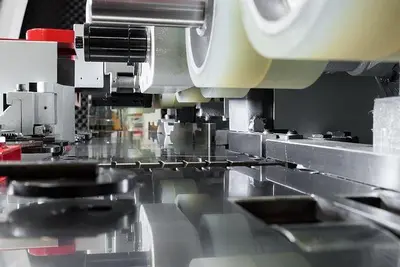

CHROME BED PLATE: Yes
NOISE REDUCTION BED PLATE FINGERS: 1st Bottom Head
MEASURING METHOD: Siko Counters
DECIBEL RATING: 70 dB
NET WEIGHT: 7380 Lbs.
GROSS WEIGHT: 7880 Lbs.
MACHINE DIMENSIONS: 120'' x 77'' x 74''
PACKAGING DIMENSIONS: 140'' x 82'' x 93''
