NEW NORTHTECH NT-N6230
Overview

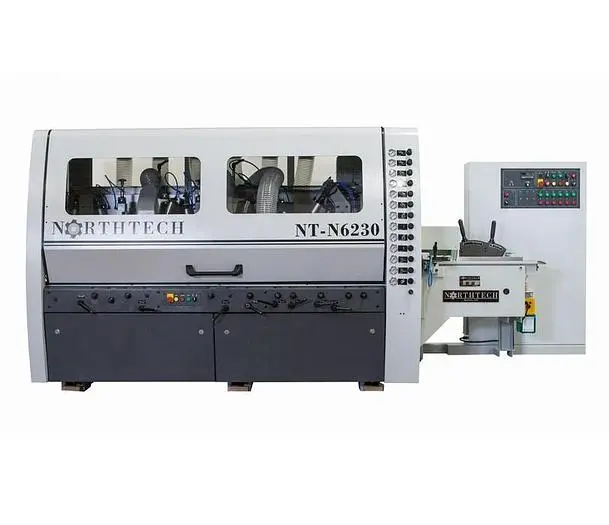

NT-N6230 MOULDER 6 HEAD The NT N6230 is quite possibly the best-valued moulder available. The 6″ x 9″ capacity moulder with a standard 6-head configuration provides limitless profiling possibilities. Features such as a chrome table, Siko mechanical readouts, automatic bed oiler and independent spindle motors powering 1-13/16″ 6000RPM Spindles are standard. There are a vast amount of optional features available making the N series an excellent option to higher priced competitive models.
Specs
MACHINE HP: 88 HP
VOLTAGE, FREQUENCY: 230/460 Volt 60HZ
PHASE: 3 Phase
AMP REQUIREMENT: 210/105 Amps

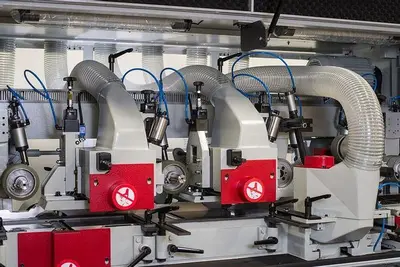

CONFIGURATION: B-R-L-T-T-B
1ST SPINDLE: Bottom Horizontal 10 HP 6000 RPM
2nd SPINDLE: Right Vertical 10HP 6,000 RPM
3rd SPINDLE: Left Vertical 10HP 6,000 RPM
4th SPINDLE: Top Horizontal 15HP 6,000 RPM
5th SPINDLE: Top Horizontal 15HP 6,000 RPM
6th SPINDLE: Bottom Horizontal 10 HP 6,000 RPM
SPINDLE DIAMETER: 1-13/16''
SPINDLE RPM: 6000 RPM
UNDER THE NUT CAPACITY: 10-1/2'' Horizontal 7-1/2'' Vertical
FEED HP: 7.5 HP
FEED SYSTEM: Knurled and Urethane Rollers
DRIVE SYSTEM: Carden Shaft
FEED SPEED RANGE: 20-120 FPM
VARIABLE FEED SPEED: Inverter Controlled
REVERSIBLE FEED: Reversible
ELEVATION HP: 1/2 HP
ELEVATION STYLE: Manual Knob Control
ELEVATION SYSTEM: Linear Guide Jacks Screws
TOTAL MACHINE HP: 88

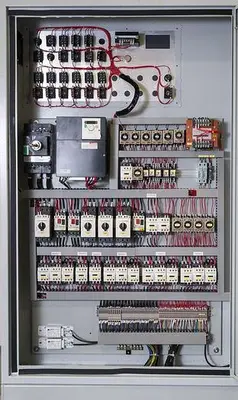

APPROVED ELECTRICAL PARTS: CE Approved Parts
DUAL VOLTAGE MOTORS: 230/460 Volt
CONTROL VOLTAGE: 110 Volt
ASSISTED START: Wye Delta Spindle 4, 5
PASS-LINE: 35-1/2''
MIN. WORKING LENGTH: 12''
MIN. WORKING WIDTH: 3/8''
MAX. WORKING WIDTH: 9''
MAX. WORKING THICKNESS: 6-1/2''
TOOLING: Straight Knife Heads
ROWS OF CUTTERS: 4 Knives
DUST COLLECTION REQUIREMENT: 981 CFM @ Extraction Points
DUST PORT SIZE OUTLET: (6) 5'' Dust Ports
DIGITAL DISPLAY: Feed Speed
POWERED ROLLERS: (3) Bottom (8) Top
PRESSURE SHOES: (2) Pressure Shoes

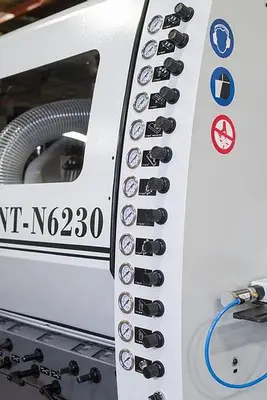

HOLD DOWN STYLE: Pneumatic Hold Downs / Pressure Shoes
FLR INCLUDED: Filter, Lubricator, Regulator
CFM AIR SUPPLY REQUIREMENT: 3/8'' Line @ 90 PSI

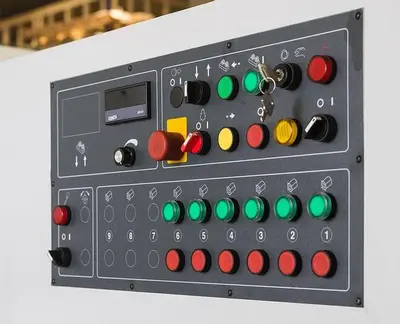

EMERGENCY STOP: Push Button
REAR E STOP: Push Button
GUARDING: Full Enclosure
OPERATION STYLE: Auto / Manual
GREASE MANIFOLD: (19) Fittings
OILER: Bed Oiler
FENCE TYPE: Adjustable
FRAME CONSTRUCTION: Cast / Steel Construction
WORKTABLE DIMENSIONS: 11'' x 136''
TABLE CONSTRUCTION MATERIAL: Chromed Cast Steel
INFEED TABLE LENGTH: 51-1/4''
CHROME BED PLATE: Yes
NOISE REDUCTION BED PLATE FINGERS: 1st Head
MEASURING METHOD: Siko Counter
DECIBEL RATING: 79 dB
NET WEIGHT: 9110 Lbs.
GROSS WEIGHT: 10800 Lbs.
MACHINE DIMENSIONS: 158'' x 75'' x 71''
PACKAGING DIMENSIONS: 163'' x 82'' x 72''
