NEW NORTHTECH NT-2ST20XL-RAL
Overview
The NT 2ST-20XL-RAL is our 20HP fan with a primary cyclone filter with a rotary air lock. Cyclone style dust collectors use the speed of the air and the physics of centrifugal force to separate dust from the air. The natural cyclonic air flow allows clean air to pass through the center of the cyclone into the blower and through the secondary filter bags. A clean air mounted blower and steel cyclone design provides decades of dust separation without primary filter bags. The 2ST-20XL-RAL cyclone and filter bag are supported by a steel frame structure that allows for the use of standard barrels and a secondary waste system such as an auger or transfer blower.
Specs
Main Motor Hp.: 20 hp.
Machine Hp.: 21 hp.
Phase: 3 Phase
Amp Requirement: 50/25 Amps
Electronics: CE Approved Components
Dual Voltage: 230/460 Volt
Control Voltage: 220V Control Voltage

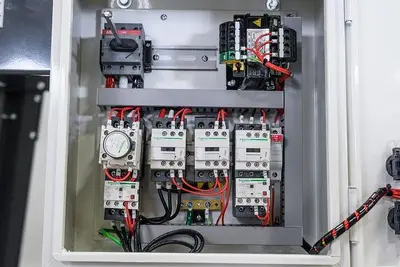

Assisted Start: Wye-Delta
Dust Port In: 16” Inlet
Dust Port Out: (2) 12” Top Outlets
Free Air CFM: 8200 CFM
R.A.L. Hp.: 1 Hp. Direct Drive
R.A.L. Size: 10” x 24”
Impeller: 26” Steel Impeller
Frame Const.: 1/8” Steel Construction
Upper Bags: 12” x 31-1/2” x 224-1/2”
Cyclone Diam.: 35” I.D.
No. of Barrels: 2 Barrels (Not Included)
No. of Dollies: 2 Dollies
Decible Rating: 90 dB
Net Weight: 2180 Lbs. W/ RAL
Gross Weight: 2370 Lbs.
Machine Dimensions: 102” x 82” x 222”
Packaging Dimensions: 91” x 48” x 76”
