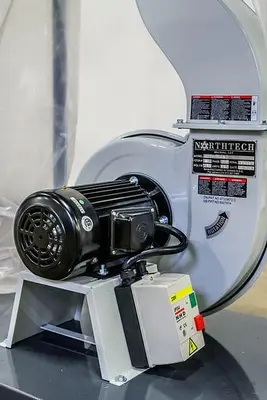

The NT DC50 is a strong portable dust collector with a double top filter bag and double bottom collection bag design. This is a rugged portable model with a stamped steel housing, double center cyclone separator and steel base with (4) casters. Often used as a single machine collector it can be fitted to collect from multiple machines. The double bottom collection bags and double oversized upper filter bag are a unique to Northtech dust collectors, providing a higher cloth to air ratio when compared to competitive models.
MAIN MOTOR HP: 5 HP
DIRECT DRIVE (MOTOR): Direct Drive Motor
VOLTAGE, FREQUENCY: 230/460 Volt 60Hz
PHASE: 3 Phase
AMP REQUIREMENT: 7.5 / 15 Amp
TOTAL MACHINE HP: 5 HP
APPROVED ELECTRICAL PARTS: CE Approved Components
DUAL VOLTAGE MOTORS: 230/460 Volt
CONTROL VOLTAGE: 220 Volt
DUST PORT SIZE INLET: (4) 4'' (1) 8''
DUST PORT SIZE OUTLET: 7'' x 7''
FREE AIR CFM: 3500 CFM
IMPELLER: 3-1/2'' x 13-1/2''
FRAME CONSTRUCTION: Steel Construction
MOBILE UNIT: (4) Caster Wheels
UPPER BAGS: 31'' x 59''
LOWER BAGS: 31'' x 46''
DECIBEL RATING: 94 dB
NET WEIGHT: 200 Lbs.
GROSS WEIGHT: 250 Lbs.
MACHINE DIMENSIONS: 60'' x 30'' x 113''
PACKAGING DIMENSIONS: 40'' x 48'' x 29''
