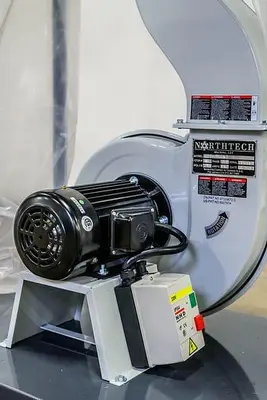

NT-DC30 DUST COLLECTOR The NT DC30 is the smallest dust collector Northtech offers with a double top filter bag and double bottom collection bag design. This is a rugged portable model with a stamped steel housing, double center cyclone separator and steel base with (4) casters. Often used as a single machine collector it can be fitted to collect from multiple small machines. The double bottom collection bags and double oversized upper filter bag are unique to Northtech dust collectors, providing a higher cloth to air ratio when compared to competitive models.
MAIN MOTOR HP: 3 HP
DIRECT DRIVE (MOTOR): Direct Drive Motor
VOLTAGE, FREQUENCY: 230/460 Volt 60Hz
PHASE: 1 Phase / 3 Phase
AMP REQUIREMENT: 1 Phase 17 Amps, 230V 3 Phase 9.6 Amps, 460V 3 Phase 4.8 Amps
TOTAL MACHINE HP: 3 HP
APPROVED ELECTRICAL PARTS: CE Approved Components
DUAL VOLTAGE MOTORS: 3 Phase 230/460 Volt
CONTROL VOLTAGE: 220 Volt
DUST PORT SIZE INLET: (4) 4'' or (1) 8'' Inlet
DUST PORT SIZE OUTLET: 7'' x 7'' Square
FREE AIR CFM: 3100 CFM
IMPELLER: 3'' x 13-1/2'' Impeller
FRAME CONSTRUCTION: Steel Construction
MOBILE UNIT: (4) Casters
UPPER BAGS: 31'' x 59''
LOWER BAGS: 31'' x 46''
DECIBEL RATING: 93 dB
NET WEIGHT: 187 Lbs.
GROSS WEIGHT: 250 Lbs.
MACHINE DIMENSIONS: 60'' x 29'' x 114''
PACKAGING DIMENSIONS: 40'' x 48'' x 29''
