MAIN MOTOR HP: 3 HP
VOLTAGE, FREQUENCY: 230/460 Volt 60Hz
PHASE: 3 Phase
AMP REQUIREMENT: 4.3 / 9.6 Amp
SPINDLE DIAMETER: 12 MM Collet
SPINDLE RPM: 24000 RPM
APPROVED ELECTRICAL PARTS: CE Approved Components
CONTROL VOLTAGE: 24 Volt
TOUCH SCREEN: 5-1/2'' Touch Screen
PASS-LINE: 34-3/4''
MIN. WORKING LENGTH: 3.93'' (100 mm)
MIN. WORKING WIDTH: 1.77'' (45 mm)
MAX. WORKING WIDTH: 23.62'' (600 mm)
MIN. WORKING THICKNESS: 0.35'' (9 mm)
MAX. WORKING THICKNESS: 0.98'' (25 mm)
MAX DEPTH MORTISE: .554''
MAX WIDTH MORTISE: .540''
CUTTER HEAD RPM: 24000 Adjustable
TOOLING: 2 Wing Dovetail Bit
DUST PORT SIZE OUTLET: (1) 3'' Port
HOLD DOWN STYLE: Pneumatic Clamp
TOTAL CLAMPS: (4) Clamps
FLR INCLUDED: Filter, Lubricator, Regulator
EMERGENCY STOP: Push Button
OPERATION STYLE: Touch Screen Control

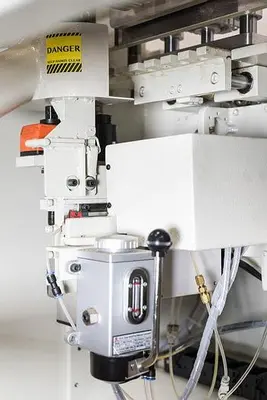

OILER: Manual Oiler
FENCE TYPE: Adjustable
FRAME CONSTRUCTION: Steel Construction
WORKTABLE DIMENSIONS: 16'' x 34''
DECIBEL RATING: 75 dB
NET WEIGHT: 1226 Lbs.
GROSS WEIGHT: 1316 Lbs.
