NT DTM13HSS Dovetail Machines

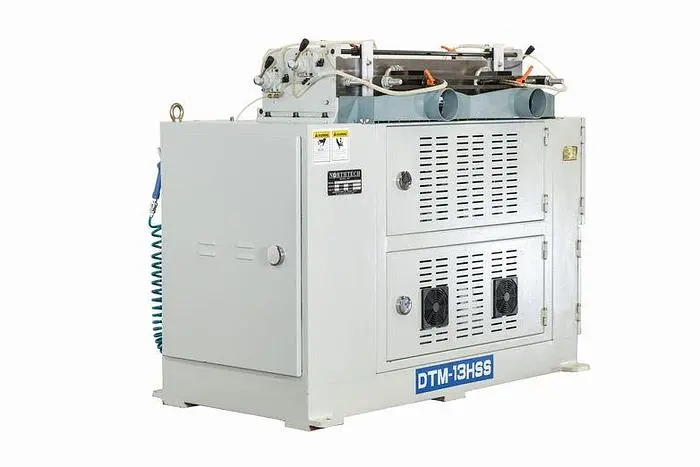

NT DTM13HSS Dovetail Machine

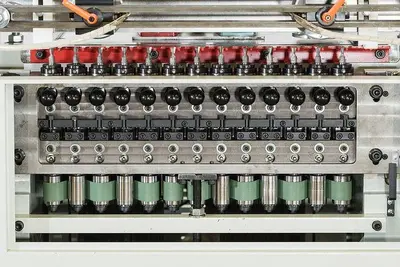

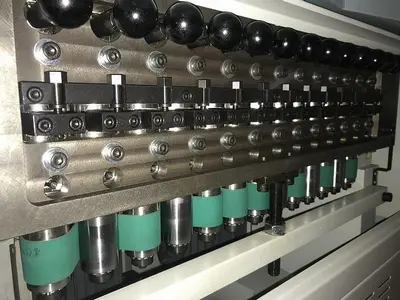

13 spindles for 26 dovetails, 8L/5R
27” working width
Automatic cycle with manual override
Each 12400 RPM precision balanced spindle is mounted inside
(2) high speed precision bearings
Convenient foot pedal control for cycle start/stop
Carriage traverses along cross directional lineal guide rails for incredibly smooth cycles

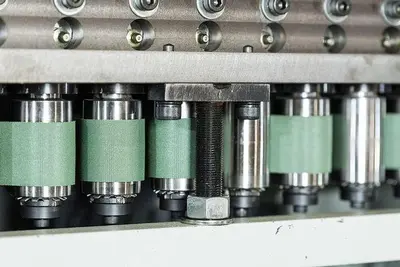

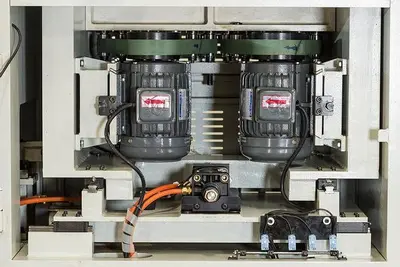

The 13 individual spindles use powered by (2) 3HP motors and driven by seamless serpentine flat belt
reduces vibration, heat, and ensures true power transfer for each spindle.
Integrated detail air nozzle

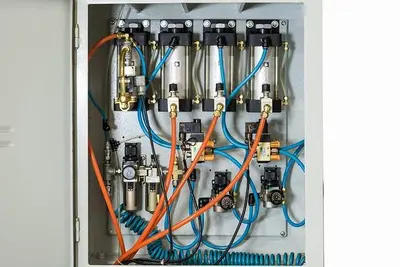

Air over hydraulic drive system for total control of cycle while cutting
Weight: 2,375 lbs.
Machine dimensions: (L) 58" x (W) 34" x (H) 45"
Warranty is one year parts
All machines are tested stateside prior to shipment providing trouble free start up.
