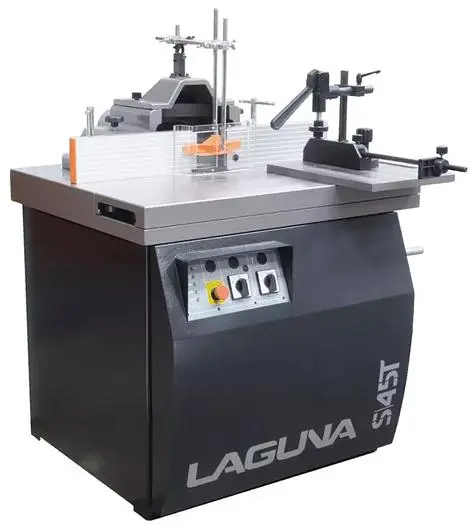

NEW LAGUNA S|45T
Overview
The Laguna S|45T Industrial Shaper
was designed to be a heavy duty industrial workhorse for commercial applications. Weighing in at over 1000 lbs. it provides an exceptional value for any pro shop.
The combination of dynamic electronically balanced spindle with robust solid castings makes the S45T run extremely smooth with absolute minimum vibration. The versatile 45° backward & 10° forward tilting spindle makes using a feeder much easier & keeps the cutting action close to the cast table rather than shaping from the top. Oversized cast table pre-drilled to accept most feeders & featuring a sliding table with tenoning as standard. Complete with table & hold down clamp. The sliding table has a full 30” stroke from miter fence to center of spindle. Miter gauge adjusts +/- 45° The interchangeable spindle comes standard as 1 ¼”, but other sizes including router collets are available. The fence is made from heavy cast iron & easily adjusts w micro-adjusters for both in/out feed. LED lights display the desired RPM. The S45T is available in both 1 phase & 3 phase. Other voltages are also available upon request.
Specs
Motor: 7.5HP, 3 phase, 220 Volt, 60 Hz.
Spindle Tilt: 45° Backwards, 10° Forward
Sliding Table: 10 ¼ X 39
Sliding Table Stroke: 18 ¾
Main Table Incl. S/T: 39 ½ X 31 5/8
Tenoning Table: 13 ¾ X 18 ½
Hold Down Clamp: Included
Tenoning Table Adjustment: 7″ Slide To Spindle
Sliding Table Stroke: 19″ Right of Spindle, 19″ Left of Spindle
Sliding Table Far Right: 30″ Spindle To Miter Gauge
Table Height From Floor: 35-⅜″
Capacity Under Nut: 5″/125mm
Spindle Stroke: 7″/180mm
Spindle: 1-¼″ Interchangeable
Max Tooling Diameter: 8-¼″/210mm Under Table, 13″/335mm Above Table
Rotation: Forward/Reverse
Fence: Micro Adjust, Cast Body
Speeds: 3000/4000/6000/8000/10000 RPM
Readout: LED Lights For Speeds
Readout: Mechanical Tilt & Spindle Height
Feeder: Pre-drilled Left Back Corner
Router Collet: Accepts, Not Included
Net/Ship Weight: 1056/1350 lbs
Shipping Dimensions (L x W x H): 49″ x 45″ x 50″
