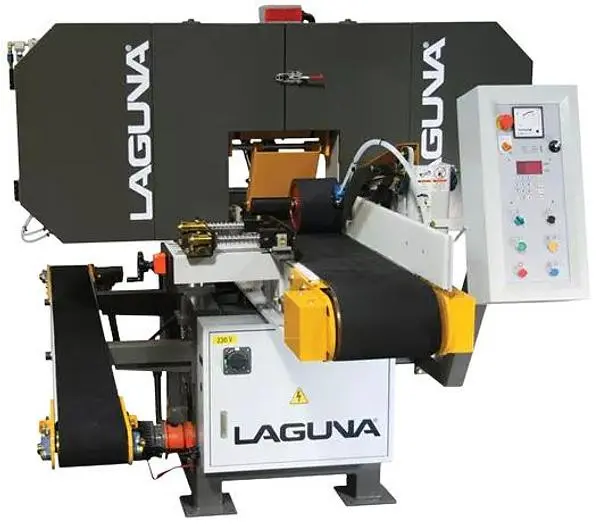

The Laguna Tools Platinum Series Horizontal Bandsaw is a powerful tool designed to get your toughest cuts done quickly and efficiently. Blade speed is set through the computer controller at the front of the machine and includes a digital height adjustment as well. The variable speed electric conveyor gets your stock through the saw and returns it for easy repeat cuts. Features Computer Controlled Blade With Digital Height Adjustment Variable Speed Electric Conveyor and Return Conveyor 2″ Blade Capacity Pneumatic Over Hydraulic Automatic Blade Tension 30 HP Motor With Variable Speed By Frequency Converter
Blase Speed Adjustable via VFD for Optimum Performance Pneumatic Blade Lubrication System Pneumatically Controlled Hold Down Rollers Ball Screw Height Control For Maximum Accuracy Headstock Conveyor Is Powered By Seperate Variable Speed Electric Motor
| Weight | 4,200 lbs | 4,200 lbs |
Max Workplace Size (W x H): 12″ x 10″ (350mm x 250mm)
Feed Belt Dimensions: 12″ x 216″
Flywheel Diameter: 28″
Blade Length: 180″
Blade Width: 1-1/4″ – 2″
Saw Lifting Motor: 1/4HP Electric
Main Motor: 30HP 220V 3 Phase
Dust Chutes: 2x 4″
Conveyor Speed: 10 – 100ft/min
Hydraulic Pressure: 308 lbs/in²
Shipping Dimensions (L x W x H): 120″ x 88.5″ x 87″
