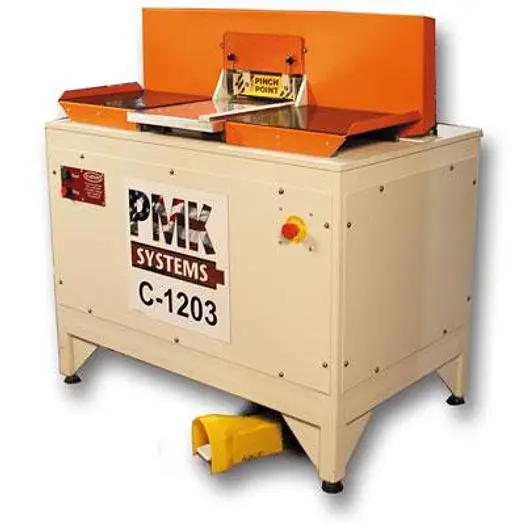

PMK Systems, C-1203 Coping / Tenoning Machine

The C-1203 is our most popular coping machine, used by custom cabinet companies, major cabinet door manufacturers and flooring companies. (2) Counter rotating spindles, Both Spindles 1 ¼” Diameter – rotating at 7000 RPM 60 seconds or less tooling change capability 7 ½ HP, 3 PHase. 230/460 volt motor UNLIMITED LENGTH OF PART Max part size 1 ” thick, 9 1/2 “ wide The capacity to stack tooling (maximum two cutters per spindle) Small footprint – 44” wide x 32” deep x 42” height Machine weight 1,137bs (+/-)
