NEW NORTHTECH NT MBS12-2T1R2L-EL

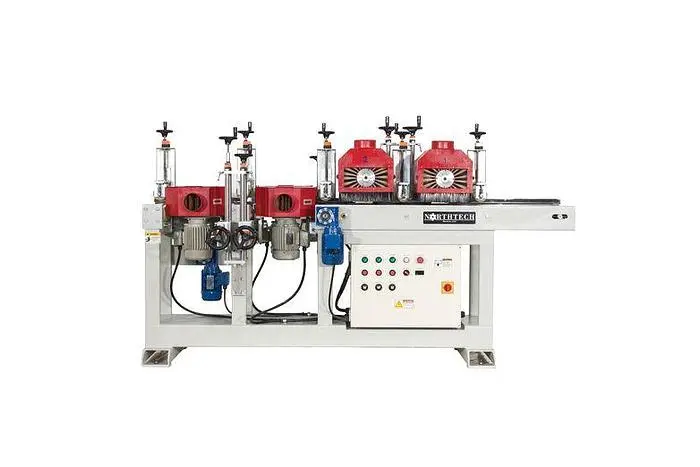

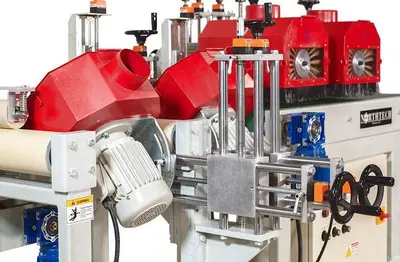

NT MBS12-2T1R2L-EL Five Head Moulding Brush Sander Sanding configuration: 2 Top + 1 Right + 2 Left Working width 1-3/4" - 12.5" Working thickness range: 1/8" - 4-3/8" Minimum working length: 18-1/2" Sanding heads RPM is inverter controlled Sanding heads included with customer choice of 80-400 grit at time of order (2) 1/3HP feed motors with 25-105 feed speed range (2) 5" top dust ports requiring 681 CFM @ point of extraction (3) 4" side dust ports requiring 436 CFM @ point of extraction 230V/460V 24 AMP / 12 AMP Net / Gross weight: Approx. 1,240lbs / Approx. 1,645lbs Machine /Packing dimensions (LxWxH): 89" x 49" x 67" / 93" x 50" x 75" Tool box and Operation/Parts Manual included Warranty is one year parts Northtech offers a full line of dust collectors for any application. All machines are tested stateside prior to shipment providing trouble free start up.

Machine Hp.: 4 Hp.
Voltage/ Freq.: 230 Volt 60Hz
Phase: 3 Phase
Amp Requirement: 12 Amps

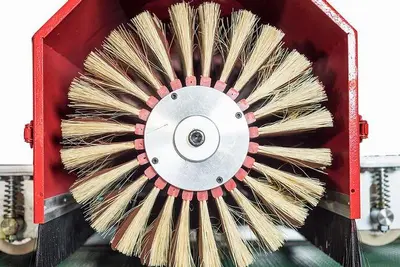

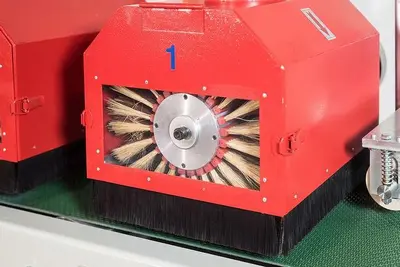

1st Head: 12-3/8” x 10-1/2” Brush Sand

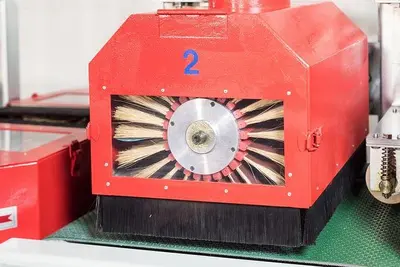

2nd Head: 12-3/8” x 10-1/2” Brush Sand
3rd Head: 4-3/8” x 10-1/2” Brush Sand
4th Head: 4-3/8” x 10-1/2” Brush Sand
5th Head: 4-3/8” x 10-1/2” Brush Sand
* Feed Hp.: (2) 1/3 Hp. Motors
* Feed Speed: 25-105 FPM

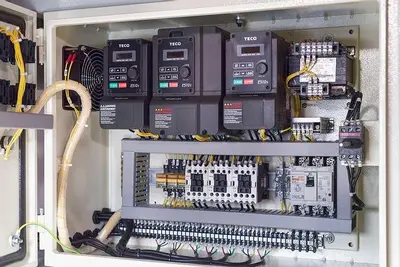

* Variable Speed: Inverter Controlled
* Elevation Style: Manual Wheel Adjustment
* Electronics: CE Approved Components
* Dual Voltage: 230/460 Volt
Feed Hp.: (2) 1/3 Hp. Motors
Feed System: Belt / (2) Pinch Rollers
Feed Speed: 25-105 FPM
Variable Speed: Inverter Controlled

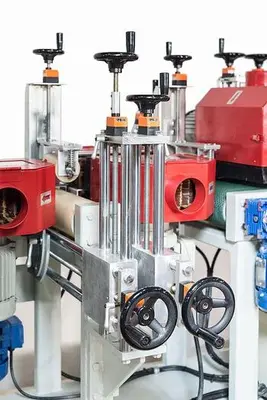

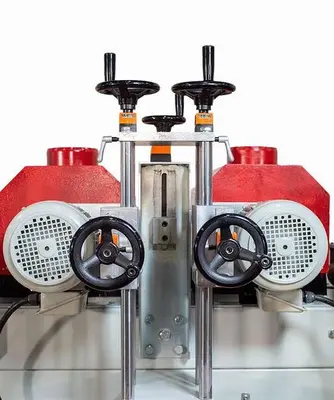

Elevation Style: Manual Wheel Adjustment
Electronics: CE Approved Components
Dual Voltage: 230/460 Volt
Control Voltage: 24 Volt Control Voltage
Pass-Line: 34-1/4”
Minimum working length: 18-1/2"
Min. Width: 1-3/4”
Max. Width: 12-1/2”
Min. Thickness: 1/8”
Max. Thickness: 4-3/8”
Dust Collection: (2) 5'' (3) 4'' 2670 CFM Total
Digital Display: Feed
Conveyor: 12” x 54”
Powered Rollers: (2) Powered Rollers
Idle Rollers: (5) Top Idle Rollers
Emergency Stop: Push Button
Fence Type: Adjustable Fence
Tiltable: Head 3/4/5 45 Degrees
Measure Meth.: Siko Counter
Decible Rating: 67 dB
Net Weight: 1240 Lbs.
Gross Weight: 1625 Lbs.
Machine Dimensions: 93'' x 53'' x 56''
