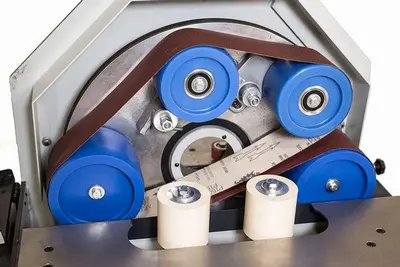

NT ES43 4 Sided Straight and Curved Part Edge Sander 2 Belt with 360° rotation (1) 1HP sanding motor (1) 1/4HP 0 – 35 FPM variable speed feed Min. working length: 350mm (13-3/4") for straight workpiece 200mm (7.8") radius and greater Min. workpiece curve: 400mm (8") radius and greater Round rod working diameter: 10~75mm (3/8 - 3") Sanding belt size: (2) 1220mm x 90mm (48-1/2" x 3-1/2") Variable rotational belt speed control: 0~1102M/min (0-3600 FPM) Auto feeding system optional variable speed of 0 – 35 FPM (1) 5" dust port requiring 681 CFM @ point of extraction Net weight: 626 lbs. Gross weight: 700 lbs. Machine dimensions: (L)36" x (W)32" x (H)48" Packing dimensions: (L)42" x (W)38" x (H)53" (1) Tool box Warranty is one year parts All machines are tested at our corporate headquarters in Indiana prior to shipment providing trouble free start up.
Main Motor Hp.: 1 Hp.
Total Hp.: 1.25 Hp.
Voltage/ Freq.: 230 / 460 Volt 60Hz
Phase: 3 Phase
Amp Requirement: 2 Amps
Feed Hp.: .25 Hp
Feed System: (2) 3x3 Rubber Wheels
Round rod working diameter: 10~75mm (3/8 - 3")

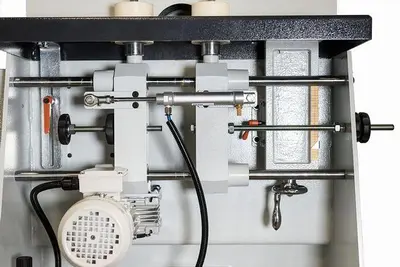

Drive System: .25 Hp. Motor to Gear Box
Feed Speed: 0 - 35 FPM
Variable Speed: Inverter Controlled
Reverse Feed: Reversible Feed

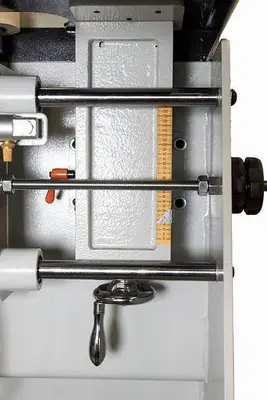

Elevation Style: Manual Wheel Adjustment

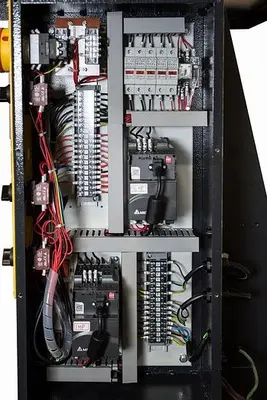

Electronics: UL Approved Components
Dual Voltage: 230/460 Volt
Control Voltage: 24 Volt Control Voltage
Operator Panel: Fixed
Pass-Line: 33-1/2''
Min. Length: 13-3/4''
Min. Width: 3/8''
Max. Width: 3''
Vertical Travel: 3''
Sandpaper Size: (2) 3-1/2'' x 48-1/2''
Dust Collection: (1) 5'' @ 681 CFM
Powered Rollers: (1) Feed Wheel
Idle Rollers: (1) Idle Roller
FLR Included: Filter, Lubricator, Regulater
Guarding: Full Enclosure
Frame Const.: 1/4'' Steel Construction
Infeed Table: 12'' x 24-1/2''
Outfeed Table: 12'' x 24-1/2''
Decible Rating: 65 dB
Net Weight: 626 Lbs.
Gross Weight: 700 Lbs.
Machine Dimensions: 32'' x 36'' x 48''
Packaging Dimensions: 38'' x 42'' x 53''
