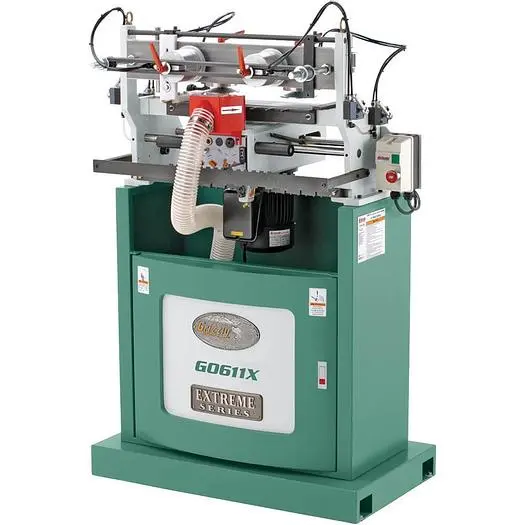

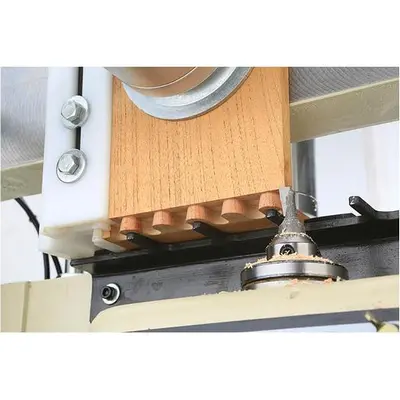

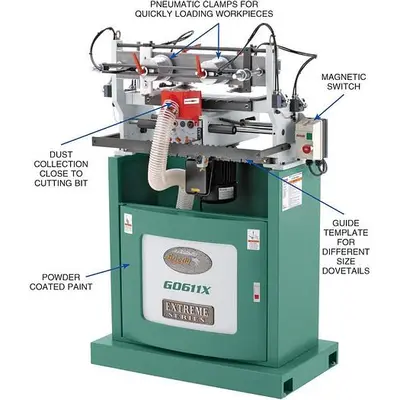

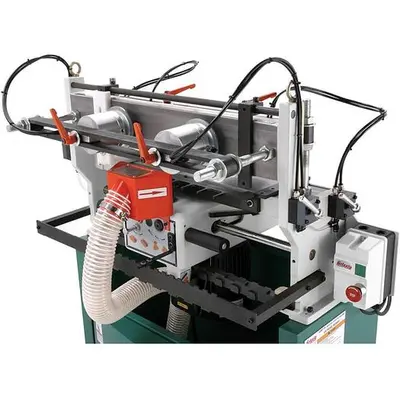

Our dovetail machines make it fast and easy to produce strong and attractive half-blind dovetail joints. Each machine is outfitted with stops and clamps, so you can quickly insert pre-cut boards, clamp them in place, and start cutting. With the ability to cut two joints at a time, these dovetail machines can produce a 4-sided drawer in under two minutes if the boards are prepared properly. Includes a 4-sided template for cutting 1", 1-1/2", 2", and 2-1/2" dovetails. Also spindle heads are micro-adjustable to give you complete control of dovetail "fit." If you're currently doing production dovetails with a dovetail jig, our dovetail machine will quickly pay for itself! Features: Precision-milled cast iron table frame Cast aluminum carriage Steel stand Hardened and ground chrome steel slide ways Ball-bearing linear guides Four-way dovetail template Micro-adjustable spindle head Workpiece stops Quick air-cylinder clamp, air filter/regulator/lubricator with pressure gauge 4" dust port Spring-loaded carriage for smooth operation Magnetic switch with thermal overload protection
Motor: 1 HP, 110V/220V, single-phase, prewired 220V

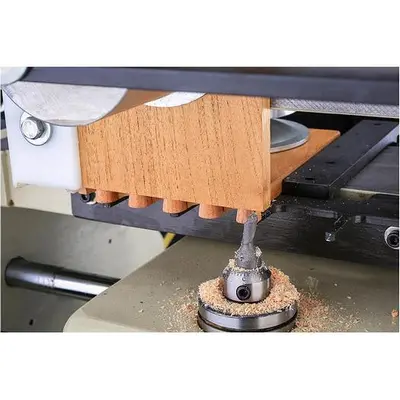

Dovetail bit: 10° angle x 5/8" long
Maximum stock size: 59" long x 16-1/2" wide
Minimum stock size: 7-7/8" long x 2-3/8" wide
Overall size: 38-5/8" wide x 56-7/8" high x 26-1/2" deep
Table size: 24" x 7-3/4"
Floor to table height: 46-7/16"
Number of spindles: 1
Spindle speed: 18,500 RPM
Dovetail shank: 12mm
Maximum dovetail height: 3/4"
Minimum dovetail height: 3/16"
Maximum thickness: 2-3/8"
Minimum thickness: 13/32"
Approximate shipping weight: 539 lbs
