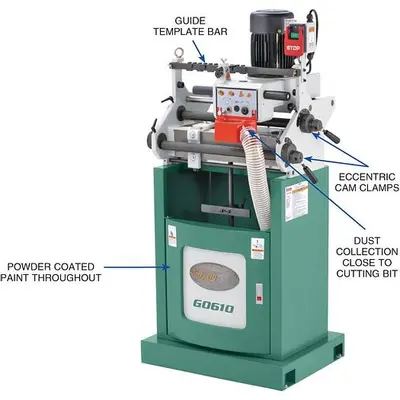

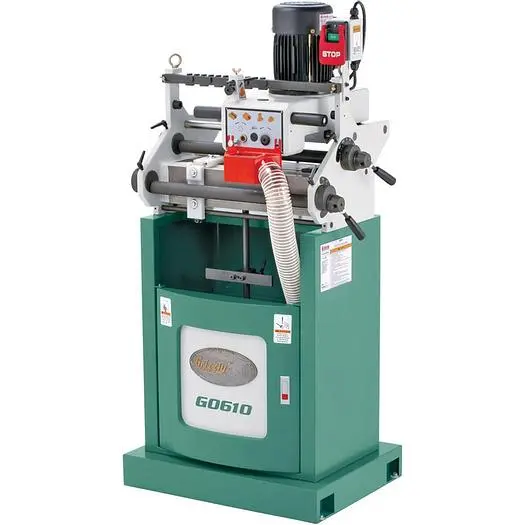

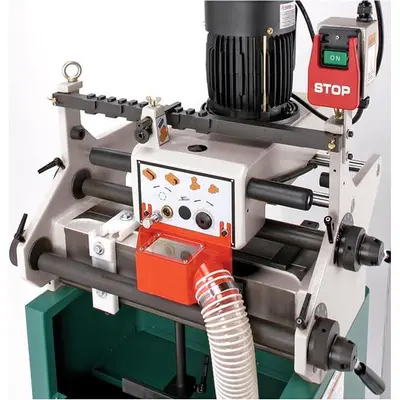

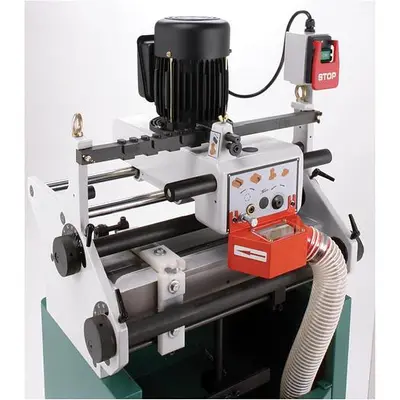

NEW GRIZZLY G0610

Our Grizzly dovetail machines make strong and attractive half-blind dovetailed joints faster than you ever thought possible. The powerful 1HP induction motor makes cutting quick while the 4-sided template makes it easy to change styles. Quick cam clamps make for fast changes and having all adjustments clearly described right on the machine insures an easy set-up and adjustment. Increase your shop's profits by creating your own 4-sided drawers in just a few minutes each. SPECIFICATIONS: Motor: 1 HP, 110V/220V (prewired 110V), single-phase, 10A/5A Table size: 19-1/2" x 7" Floor to table height: 38-5/16" Overall size: 30-1/2" W x 22-1/2" D x 57" H Number of spindles: 1 Spindle speed: 18,500 RPM Dovetail bit: 10° x 5/8" long Dovetail shank: 1/2" Maximum dovetail height: 3/4" Minimum dovetail height: 3/16" Maximum thickness: 1-3/4" Minimum thickness: 13/32" Maximum stock size: 11-1/4" W x 28" L Minimum stock size: 2-3/8" W x 7-7/8" L Approximate shipping weight: 373 lbs. FEATURES: Precision-ground cast iron table Cast-aluminum carriage Steel stand Hardened and ground chrome steel slide ways Ball-bearing linear guides Four-way dovetail template Micro-adjustable spindle head Workpiece stops Quick cam clamp 4" dust port Spring-loaded carriage for smooth operation
